Factory High Quality Steel Wire Braided SAE J517 100r1at R2at 1sn 2sn Hydraulic Hose Rubber Pipe

Product Description

SAE J517 100r1at Product Description
Tube:
Oil Resistant Synthetic rubber
Reinforcement:
One braid of high-tensile steel wire
Applicable ways:
Used to transport hydraulic fluids, such as: alcohol, hydraulic oil, fuel, lubricating oil, emulsion, etc.
Operating temperature:
-40ºC~+120ºC
Cover:
Smooth/WrappedApplication
Our Advantages
1.Professional
Our factory was established in 1999 and has more than 20 years of experience in hydraulic hose production. Currently, we have three factories of our own, one for rubber mixing and two for production.
2.High productivity
We have 26 high-speed automatic braiding machinesAt present, our monthly output can be maintained at about 800,000 meters , and the annual output can reach 10 million meters.
3.High quality raw materials
Our factory uses high-quality raw materials to ensure product quality, and we have our own rubber mixing center to control quality from the source.
4.A good after-sales service
During the after-sales validity period, once we receive customer feedback on quality issues, we will respond within 72 hours. Customer satisfaction is our aim.
Product Parameters

DN	Hose I.D		Braids O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	Inch	MM	MM	MM	MPa	Psi	MPa	Psi	MM	Kg/m	Meter
5	3/16	4.6-5.4	10.6-11.7	13.3-14.1	35.0	5075	140.0	20300	100	0.32	50/100
6	1/4	6.2-7.0	12.5-13.1	14.4-15.2	35.0	5075	140.0	20300	100	0.36	50/100
8	5/16	7.7-8.5	14.2-14.8	16.3-17.1	29.7	4307	118.8	17228	115	0.45	50/100
10	3/8	9.3-10.1	16.2-16.8	18.3-19.1	28.0	4060	112.0	16240	130	0.53	50/100
13	1/2	12.3-13.5	19.4-20.0	21.5-22.3	24.5	3553	98.0	14212	180	0.66	50/100
16	5/8	15.5-16.7	22.8-23.4	25.0-25.8	19.2	2784	76.8	11136	200	0.78	50/100
19	3/4	18.6-19.8	26.4-27.2	28.6-29.4	15.7	2277	62.8	9108	240	0.96	50/100
25	1	25.2-26.4	33.9-34.7	36.3-37.1	14.0	2030	56.0	8120	300	1.35	50/100
31	1-1/4	31.4-33.0	42.8-43.6	45.3-46.1	11.3	1639	45.2	6556	420	1.70	20/40
38	1-1/2	37.7-39.3	49.2-50.0	51.7-52.5	8.7	1262	34.8	5048	500	2.35	20/40
51	2	50.4-52.0	61.9-62.7	64.4-65.2	7.8	1131	31.2	4524	630	3.00	20/40

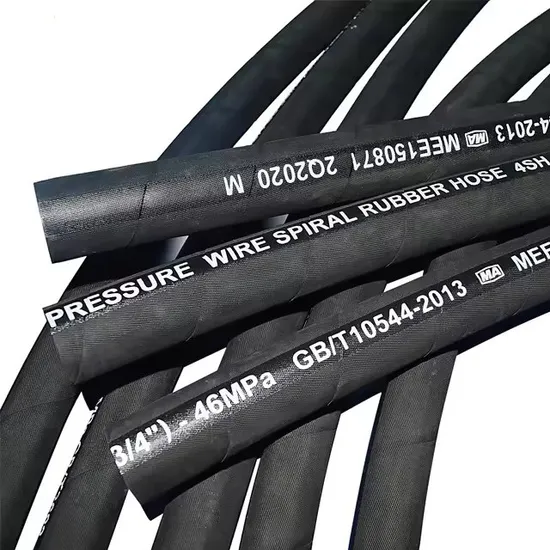

Detailed Photos
Certifications
As of February 2024, Jintongda currently has obtained many international certifications including ISO, WSF, SAE, DIN, IAF, etc. Our quality is guaranteed, please feel free to buy. Market Distribution
Our products can meet the different needs of different markets. Currently, our markets are mainly distributed in Europe, America, Russia and other regions.
Product Range
Company Profile
JUYE JINTONGDA PIPE INDUSTRY CO., Ltd is a professional manufacturer of hydraulic hose and industrial hose with various specifications from 1999. We integrates the Research&Development, Production, Sales Export and focus on the high quality products all the time.
Our company is registered with 21 million RMB capital, covering an area of 30,000 square meters. We are located in the alluvial plain of the Yellow River, with developed transportation and convenient logistics.
We specialize in production and sales of hydraulic hose, now we mainly produce 1SN, 2SN, 4SP and 4SH products in compliance with American standards of SAEJ517 and European standards of DIN.Our annual production capability is 10 million meters around (cloth hose 4million and smooth hose 6million). We use automatic high speed braiding machine and advanced quality management system to ensure the reliability and stability of the products.
We have strict ISO quality control system and after-sales service system as well. Each batch of goods will do burst pressure tests and impulse tests before leaving factory.
JINTONGDA sincerely invite every client to visit our factory, we will serve you wholeheartedly. Sincerely awaiting for your visit.Workshop
Office Building
Storehouse
Manufacturing Technique
Loading photos
Exhibitions and Clients
FAQ:
Q1. What are your terms of packing?
A: Typically, our goods are securely packed in neutral, sturdy white woven bags. Should you possess a legally registered patent,
we can accommodate your request by packing the goods in your uniquely branded boxes, provided we receive your authorization letters.
Q2. What are your terms of payment?
A: We operate with a T/T arrangement: 30% deposit, with the remaining 70% due before delivery. Prior to settling the balance, we will provide you with detailed photos of the products and their packaging.
before you pay the balance.
Q3. What are your delivery terms?
A: We offer a variety of delivery terms including EXW, FOB, CFR, CIF, and DDU.
Q4. How is your delivery schedule?
A: On average, delivery takes 20 to 60 days post receipt of your advance payment. However, the specific timeframe is contingent on the particular items and order quantity.
on the items and the quantity of your order.
Q5. Do you possess quality certificates?A: Absolutely, we hold ISO, SGS, CE certifications as well as related test reports.
Q6. What is the duration of your product guarantee?A: We confidently offer a one-year guarantee on our products.
Q7. Do you conduct tests on all your products prior to delivery?A: Certainly, we perform comprehensive 100% burst pressure tests and impulse tests on all goods before they are dispatched.

---
