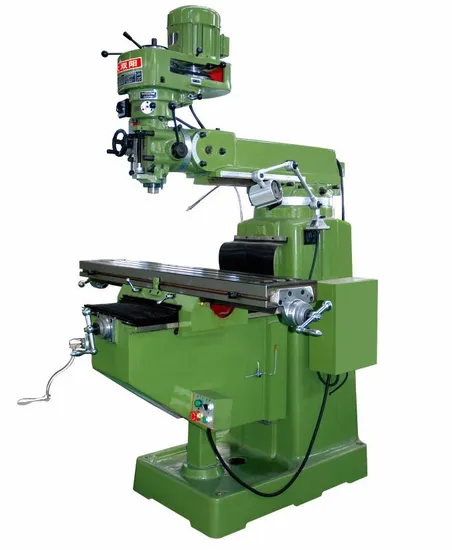

Vertical Turret Milling Machine (3M 4M 5M 6M)

Product Description

Vertical turret milling machine

Description		3M	4M	5M	6M
Spindle Taper		NST#30OR RB	NST#30OR RB	NST#40	NST#40
Spindle speed	Rpm	16GRADES80-5440(50HZ)	16GRADES80-5440(50HZ)	16GRADES66-5440	10GRADES80-2850
Max swivel of the spindle head(left to right)	°	45	45	45	45
Spindle quill travel	Mm	127	127	132	132
Stroke of telescopic boom	Mm	550	550	570	590
Distance between spindle nose and table surface min/max	Mm	0-428	0-428	0-530	0-580
Distance from the spindle center and to the vertical guide way	Mm	45	45	45	45
Speed of the spindle center to vertical guideway	°	190-685	190-685	170-720	172-756
Speed of the spindle auto feed(per circle)	Mm	0.04/0.08/0.15	0.04/0.08/0.15	0.04/0.08/0.15	0.04/0.08/0.15
Table size	Mm	254*1270	254*1270	305*1370	305*1370
Longitudinal travel	Mm	800	800	900	900
Cross travel	Mm	410	410	420	420
Vertical travel	Mm	380	380	400	400
T slot(width*num*interval)	Mm	3*16*65	3*16*65	3*16*65	3*16*75
Spindle motor	HP	3	3	5	5(1/2)
Lubricate system		Manual feed	Manual feed	auto	auto
Net weight	KGS	1200	1300	1500	1650
Over dimension	MM	1600*1730*2200	1600*1730*2200	1660*1830*2350	1680*1900*1900*2400

WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
