Putai High Quality T Ceiling Making Main Tee Grid Roll Forming Machine for Gypsum Board

Product Description

Product Description

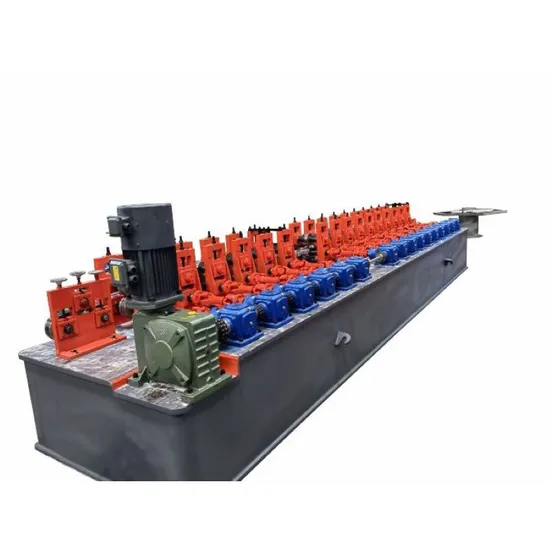

Putai High Quality T Ceiling Making Main Tee Grid Roll Forming Machine for Gypsum Board

gypsum metal T grid ceiling t grid ceiling t bar frame t bar suspended ceiling grid. The T-bar is a technical profile supporting suspended ceiling panels (cell grid suspended ceiling). This highly technical system consists of two different profiles which are called Main Tee and Cross Tee. A galvanized sheet metal base gives structure and strength to the profile, but all that can be seen once the ceiling is assembled is a pre-painted sheet metal profile. Special machining and hooks or connectors are to be foundon in the profile body and the ends, which allow the profiles to be fastened to the ceiling and to each other. These materials are widely used in the buildings now, such as office buildings and schools, etc.
PUT-TEC High-Quality Ceiling system for Gypsum Board Main Tee Grid Making Machine details are as below:

Decoiler	Weight	150kg
	Steel coil ID	450~550mm
	Steel coil OD	1500mm
Roll Forming Machine	Rollers	14~18 Rows
		Material: Cr12
		Inner diameter: 40mm; Outer diameter: 90mm
		Heat treatment hardness:HRC58-62
	Transmission	The main drive uses worm gear transmission
	Middle Plate	Thickness is 25mm
Hydraulic System	Power	7.5KW
Cutting System	Servo Tracking System	2.2KW
Punching	Material	SKD11

Customer

Certifications

Company Profile
Our company is committed to researching, developing, and producing light steel profile cold-forming Machines!
The company has a number of technology research and development patents. The earliest origin of the factory was the establishment
of a professional mold precision machining center in 2003. In 2015, I researched and developed the production of automatic steel profile of drywall
forming machines for ceiling systems, and accounted for a large proportion of sales at home and abroad.
In 2019, our company successfully developed a fully automatic light steel profile baler combined with a forming machine to realize a fully
automated production line from raw materials to final product baling. Save labor costs for customers and improve production efficiency.
The equipment has a 90% market share in China. In 2020, through continuous upgrading and improvement, our company began to show
our fully automatic packaging system equipment to the world. Sold to America, Europe, Southeast Asia, the Middle East, and other large and
powerful building materials companies.
Our company's equipment and after-sales service are appreciated and recognized by new and old customers, and we have
established long-term business partnerships. Welcome purchasing teams from all over the world to come to our company for consultation and negotiation.
We mainly produce equipment with high quality and high stability, which not only brings long-term production force and efficiency to customers,
but also is our company's long-term and sincere goal of friendly cooperation to achieve a win-win situation for both parties!
The International Trade Department of our company is located in Tianjin, which is a port city, which is more convenient for export formalities.
Our factory is located in Hebei Province, and it only takes 30 minutes to reach the factory by high-speed rail from Beijing.
The factory is located at a highway junction near a high-speed rail station. The location of our factory is very convenient, to make your business travel easier and more efficient. Installation Instructions
Packaging & Shipping

Related Products
FAQ:
1)Q: Do you have after sales support? A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running. 2)Q: How do your machines compare with other big companies in this market? A: We are up to date with the latest technology and improve our machines accordingly 3)Q: How does your factory do regarding quality control? A: Quality is priority. we always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment. 4) Q: Do you sell only standard machines? A: No, most of our machines are built according to customers specifications, using top brand name components 5) Q: Can you make the machine according to my design or proto type? A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
6)Q: How can we be assured that you will deliver us quality machine with spare parts? A: 1. Customers to send the technical people to our factory for checking the quality. 2.We can send the technicians to the buyer`s factory for the installation of the machine. 3.Good aftersales-service, its free of charge during the warranty period. 7)Q:What can you do if the machine broken? A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we supply the technical support for the whole life of the equipment. 8:How to play order? A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit ---then OK 9:How to visit our company? A: Fly to Tianjin airport, we will pick up you at the airpport.

---
