XCMG mm8-15 Clay Brick and Tile Sandcrete Mud Block Moulding Machine

Product Description

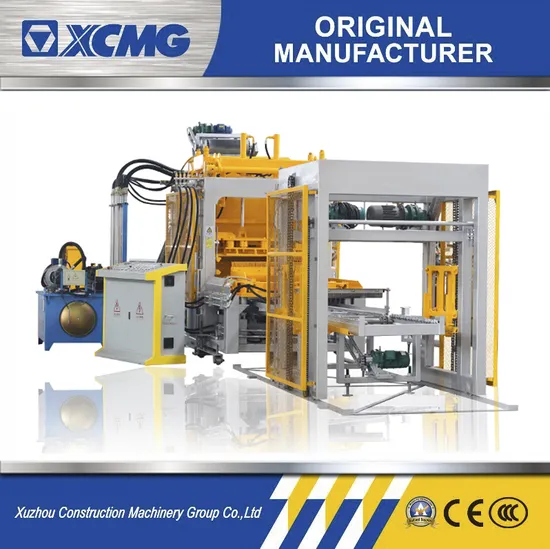

XCMG MM8-15 Clay Brick And Tile Sandcrete Mud Block Moulding Machine
Product Description
MM8-15 is a medium size of our series block,brick,paver,curb stone making machine,which is one of the most popular machine used in the market by overseas customer.
It can produce different kinds of product just changing the moulds to meet the requirement of the market.
The advanced electrical and hydraulic system controls the material feeding and molding of our block making machine, which makes the material feeding well-distributed and the moulding perfect.
Technical Characteristics:
Hydraulic system:
With"Yuken" brand single proportional valve and directional relief valves, the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency.
PLC Control system:
Combined with German automatic control technology and system, it adopts German Siemens PLC and Siemens touch screen control to make each action accurate and reliable, computer operation saves time and effort, easy operation with low failure rate.
Vibration system:
With Static and Dynamic vibration table,it is designed to ensure the amplitude of the vibration table, so as to ensure the high density of concrete products.Adjustable vibration frequency/speed control via VSD (Variable Speed Drive) provides optimum compaction for different product types being manufactured, reducing machine maintenance costs and increasing productivity.
Product Parameters

Technical Specification for MM8-15 Automatic Block Making Machine
Pallet Size:	980x880mm
Vibration:	Table Vibration
Rating Pressure:	21Mpa
Cycle time:	15-22s
Vibration Frequency:	2800~4500rmp
Motors Power:	52KW For Main forming machine parts only with material conveyor belt
Vibration motor:	Electrical Vibration motor
Machine Dimension:	9800x2300x2600mm
Gross Weight:	About 10T For Main forming machine
Raw Materials:	Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes
Applied Products:	Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:	Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions
Installation power:	110KW for complete plant
Actual power consumption:	50~60KW/hour

Product Picture
Packaging and Transportation
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
