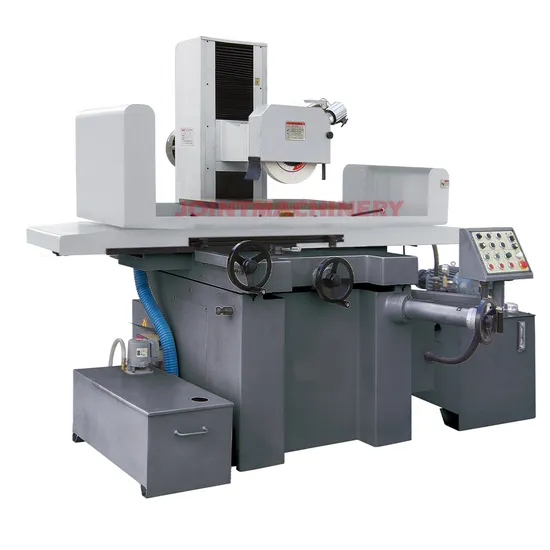

Taiwan High Quality Hydraulic System Surface Grinding Machine for Professional Metal Grinding

Product Description

1. Robust and Rigid Structure
The Premium Quality Surface Grinding Machine features an incredibly robust base column structure providing unparalleled strength, superior stability, and exceptional durability. Crafted from high-strength, wear-resistant cast iron, each main casting undergoes multiple aging treatments to entirely eliminate internal stress, ensuring enduring performance. The guide rails boast high wear-resistance, guaranteeing both precision and longevity, making this machine a reliable choice for professional-grade grinding.
2.High Quality, Precision Grinding Head
Employing a high-precision spindle system sourced from a renowned Taiwanese manufacturer with a global reputation for excellence, this machine is a paragon of precision. The spindle is equipped with P4-level ultra-precision bearings, maintaining a taper end deflection within an astonishing 2µm. Further enhanced with a V-3-level low-vibration motor, this machine ensures high-speed rotation with minimal noise and zero vibration. Capable of handling significant loads, it excels in heavy cutting and diverse molding grinding applications.
3.High-Precision Feed Structure for Accurate Grinding
This machine's slides, both front and rear, left and right, are lined with high-grade imported wear-resistant sheets TUR CITE-B, precisely scraped to assure sustained high precision. The meticulous alignment of the column and spindle head guide rail is perfect for precision forming grinding of various grooves, ensuring impeccable accuracy in every project.
4.Advanced Automatic Lubrication System
Upon activation of the spindle, the sophisticated lubrication pump begins to work automatically, thoroughly lubricating all screws and sliding surfaces. This innovative system effectively reduces wear, prolonging the machine's operational accuracy and extending its lifespan.
5.Comprehensive Safe Dust Protection System
Strategically installed dust-proof components between each moving part, including clever sheet labyrinth rubber guards, safeguard the guide rails ensuring both dust and water-free operation, enhancing safety and machine longevity.

1. Precision Grinding Head
Equipped with an intuitive manual grinding head featuring a rapid lifting mechanism, this component utilizes a built-in motor for impeccable spindle rigidity and precision, elevating grinding quality to new heights.
2. Efficient Electromagnetic Chuck
Designed for efficiency, this electromagnetic chuck simplifies operation, conserves time, and ensures continuous use for over 20 hours, optimizing productivity and performance.
3. Precision Metal Hand Wheel
Crafted for precision, the high-precision metal feed handwheel offers effortless control, achieving an impressive grinding model accuracy of 0.002MM, perfect for demanding applications.
4. Precision Double V Guide Rail
The advanced Double V guide rail design, longitudinally and laterally complemented by a single V flat guide rail, is hydraulically driven and ensures superior precision in operation.
5. Durable Resin Sand Cast Iron Body
The machine's cast iron body boasts excellent stability and high strength, coupled with artificial aging treatment that preserves dimensional accuracy and enhances the quality of finished castings.
Taiwan High Quality Hydraulic System Surface Grinding Machine for Professional Metal Grinding

Model			84MSI
Table size		mm	800*400
X axis travel		mm	840
Y axis travel		mm	420
Table side way			Slide way
Max distance from spindle center to working table		mm	700
Auto crossward feed			0.1-8
Crossward feed of hand wheel		1 Rev	0.1/1
		1 Div	0.001/0.01
Auto vertical feed			0.001-0.999
Vertical rapid moving feed			150
Vertical feed of hand wheel		1 Rev	0.1/1
		1 Div	0.001/0.1
Rotation speed	50HZ	rpm	1450
	60HZ	rpm	1750
Grinding wheel size			Φ355×(20-40)×127
Spindle motor			7.5*4
Hydraulic motor			3*6
Crossward driven motor			9NM
Vertical driven motor			1*4
Coolant pump motor			0.12*2
Dust-clean motor			-
Dimension (L*W*H)		mm	2300*2100*2220
Net weight		kg	3000

Shenzhen Joint Machinery Co., Ltd. stands as a prestigious manufacturer and global exporter, specializing in CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. We are utterly dedicated to offering machines of unrivaled quality and outstanding service to our esteemed global clientele. Our unwavering commitment to quality control and enhancement ensures our products consistently meet the pinnacle of industry standards. Integrating cutting-edge technologies from Taiwan and Germany with state-of-the-art production equipment and processes, we deliver machines celebrated for their precision, stability, and reliability. Renowned for their exceptional performance, our machines adeptly meet the multifaceted demands of intricate and high-caliber machining tasks. Our products proudly cater to an international market, spanning Asia, Europe, South America, North America, and beyond. Our esteemed clientele includes long-term partners across various countries and regions, collectively achieving remarkable business success and value.

---
