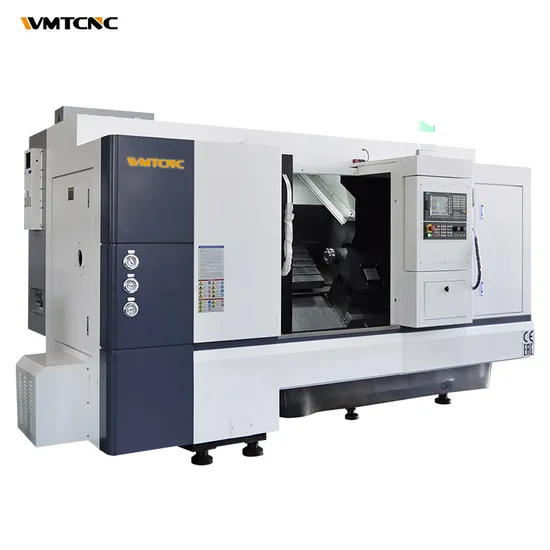

New Tech High-end cnc turning machine SWL12 automatic turning slant bed cnc lathe

Product Description

Product Description
High-end automatic turning slant bed cnc lathe SWL12 main features:
1. The SWL Series high-performance turning centers were designed from to provide setup flexibility, superb rigidity, and excellent thermal stability.
2. These machines offer high cost performance.
3. SWL lathe have a heavy-duty cast base with "true align" slant bed design.
4. The machine bed, headstock, turret and tailstock are aligned on the same plane.
5. This unique design feature reduces heat built-up and resulting thermal expansion.
6. The net result is higher precision machine tool.
7. Additional resulting efficiencies from the "true align" design are greater rigidity and smoother operation which provides a variety of benefits.
8. You can expect to produce highly accurate parts with extremely fine surface finishes.
9. There are multiple benefits to having a lathe that combines such a large sized "vibration damping" solid, cast base.
10. PLUS, properly aligned and balanced components.
11. True slant bed minimizes the impact of thermal expansion to precision.
12. 35 degree bed slant is more convenient for scrap iron.
13. Better dynamics and higher precision.
14. It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable.
15. Increasing the versatility and automation of the lathe.
16. Better water-resistant and scrap-iron-resistant.

Specification	SWL12
Capacity
Chuck size	12",*15"
Max. swing dia. over bed	φ530mm
Max. length of workpiece	750,*900,*1400,*1820mm (C2C*1000,*1500,*2000)mm
Max. swing dia. over slide	φ280mm
Spindle
Spindle bore	φ105mm	*φ120mm
Max. dia. of through-hole	φ91mm	*φ110mm
Spindle nose	A2-8	*A2-11
Spindle speed range	1800rpm	*1000rpm
Main motor power	11/15kw, *15/18.5kw
Axis
X axis travel	280mm
Z axis travel	750, *1000, *1600mm
X/Z rapid traverse	15/20m/min
Turret
Center height	100mm
No. of tool stations	8,*12 position
Tool shank size	25x25mm
Tailstock
Type of tailstock	Hydraulic, *HPT, *SST
Taper of tailstock quill	MT5
Travel of tailstock quill	150mm
Travel of tailstock	100-750/*1000mm, *1600mm,*100~1800
Structure
Slant bed degree	35°
Guideway type	LM
Others
Power capacity	20kVA
Overal dimension (L×W×H)	3350x2000x2350mm
Machine weight	5900kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
