Products Overview

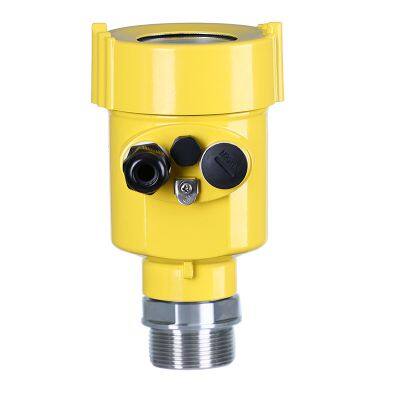

80GHz FMCW radar level meter is the typical non contact tanks level measuring tools which is the through-air radar level sensor with frequency modulation in the range of 77-81GHz.
Non contact level metre for tanks 80GHz radar level meter has the advantage in both short distance and large range measuring : for short distance range , blind zone within 10cm fundamentally battle the flaw of 26G radar level meter ; for the large range level measuring , 80GHz radar can reach a range of 120m ,very easy for measuring the super large storage tanks and silos .
80GHz FMCW radar meter allows the real-time online signal output of 4-20mA ,Hart ,and RS485/MODBUS. 80GHz non contact radar meter has good performance at measuring strong dust, steam,bubbles, stirring occasions than the conventional 26G open air radar level meters .
Name
| 80GHz Radar Level Meter -Non Contact Level Meter for Tanks
|
Model
| WERD-9X/WERD-9XS
|
Medium
| Corrosive Liquids; Hygienic; Steam/bubble; Solids
|
Antenna Type
| PTFE or Lens (42mm;46mm;76mm, lens size depends on range )
|
Measure Range
| 0-120m (RD-9X)
0-10m (RD-9XS)
|
Accuracy
| ±1mm
|
Response time
| 0.6s
|
Display
| LCD display
|
Beam angle
| 6°
|
Adjustment time
| 0.6s (according to parameter setting)
|
Microwave frequency
| 77-81 GHz,5GHz FMCW bandwidth
|
Output signal *
| 4-20mA +HART, RS485 MODBUS -RTU
|
Power supply *
| DC 6-24V, AC 220V/50Hz
|
Material
| Shell: aluminum, process connection: 304 stainless steel,
|
Pressure
| 0.1-2MPa
|
Storage temperature
| -40~+120℃ (-40~+212℉)
|
Protection class
| IP68
|
Electrical connection
| 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
|
Installation *
| flange/1.5"thread
|
Warranty
| 12 months
|
Products Details
Installation Tips
Rich experiences in both designing and production of 26G & 80G radar level meters, you can rely on us anytime for the professional solutions and technical guidance !
>>
