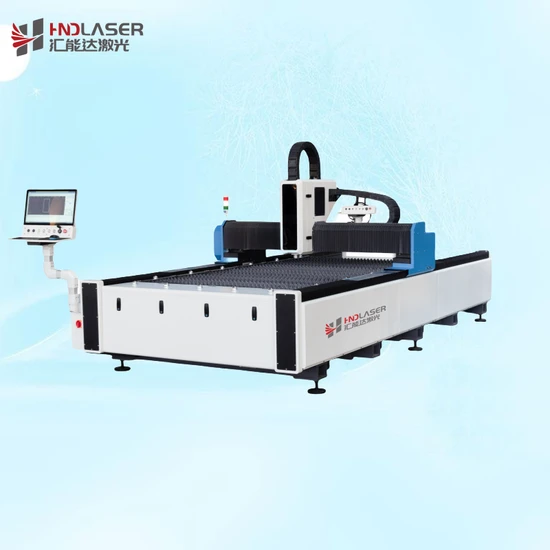

Advanced High-Speed Laser Cutting Equipment for Sheet Metal Solutions

Product Description

Product Description
Product Parameters
Parameters of the whole machineParameters of the Whole Machine

Model	DF-3015F	DF-4020F	DF-6025F
Cutting Range (mm)	3100*1600mm	4100*2100mm	6100*2600mm
Laser Power (w)	1000W&2000W&3000W&6000W&8000W&10000W&12000W&15000W
Maximum cutting speed	≤60m/min
Maximum idle speed	100m/min
Positioning Accuracy	0.03mm
Reposition Accuracy	0.03mm
Cuttable material	1.Stainless Steel Sheets&Galvanized Sheets&Electrolytic Sheet&Silicon Sheet(0.5mm-60mm) 2.Aluminum Alloy Sheet(0.5mm-50mm) 3.Brass Sheet(0.5mm-20mm)

Key Component Configuration

Main Component	Description	Brand&Origin
Laser	Optional	RECI*MAX*RAYCUS/China
Optical System	Imported Medium Membrane	UK
Laser Cutting Head	Optional	RAYTOOLS/BOCI
Chiller	Laser Specific Chiller	Hanli/China
Reducer	Xinbao Flange Output Structure	SHIMPO/Japan
Motor	Servo motor	Inovance&YASUKAWA/China&Japan
Computer System	Yanzhong Industrial Computer	HP/Japan
Electrical Components	Schneider Electric	Schneider/France
Cutting Software	Professional 2D Laser Cutting System	HND Laser
Tracking Sensor System	High-Precision Automatic Sensing, Accuracy ±0.1mm	HND Laser
Machine Bed	Gantry Type	HND Laser

Our customers
Certifications
Laser Cutting Machine with SGS Certification
(Customizable to Meet Your Specifications)
Experience absolute assurance with our state-of-the-art laser cutting machine, proudly carrying the prestigious SGS Certification. This accolade not only signifies superior mechanical performance but also ensures compliance with international safety and stability benchmarks.For business owners, managers, and operators, this certification serves as an unwavering promise of reliability and safety, guaranteeing smooth operations and peace of mind every time you power up.
Packaging & Shipping
Our premium laser tube cutting machines have reached over 50 countries globally, ensuring that your orders are delivered securely and efficiently to your doorstep.

Company Profile
Company Information
ZHANGJAGANG HNDLASER TECHNOLOGY CO., LTD HNDLaser Technology Co., Ltd. is a distinguished national high-tech enterprise supported by HNDLaser in Zhangjiagang. We excel in pioneering research, innovative development, meticulous production, and the application of advanced laser equipment. Our esteemed portfolio includes Zhangjiagang HND Intelligent Equipment Co. and other notable enterprises.
With substantial annual investments in R&D, our products have earned widespread market admiration, consistently ensuring robust production output and dominance within the laser industry. HNDLaser is deeply committed to a philosophy focused on human-centric values and driven by scientific and technological innovation. Our unwavering dedication to innovation and talent cultivation forms the bedrock of our strategy to amplify market share and enhance product recognition continuously.

After Sales Service
A. Pre-Sales Service
1. Technical Consultation: Receive expert technical and pricing consultations tailored to your specific requirements within two hours. We respond promptly to inquiries about processing table size, precision, cutting thickness, and operating costs related to cutting parameters, alongside providing relevant samples and detailed product information.
2. Site Visits: We warmly welcome you to visit our company for an insightful inspection at your convenience.
B. After-Sales Service
1. Our exhaustive after-sales service system offers round-the-clock tracking of customer feedback, ensuring your satisfaction.
2. From the purchase date, benefit from complimentary access to a wide array of technical training sessions hosted by us.
3. After your purchase, we facilitate sending our expert technicians to your country to provide comprehensive installation and operational training.
4. Share your valuable suggestions or inquiries through various channels, including phone, fax, mail, email, or utilize our website's customer message service for seamless communication.
FAQ
Q1: What about the warranty period?
A1: Rest assured, if you encounter any issues with the main components of the machine (excluding consumables) during the warranty period, we'll swiftly replace or repair them at no extra cost.
Q2: I'm unsure which model best suits my needs. Can you help me decide?
A2:Certainly! Please provide the following information:
(1) The type of material you're working with.
(2) The thickness,width,length and material of your sheet.
(3) The cutting requirements you need.
Q3: What are your payment terms?
A3:We offer flexible payment options such as TT, Western Union, PayPal, LC, and Cash, among others.
Q4: Do you provide CE certification and other necessary clearance documents?
A4:Absolutely, we have all the essential original documents. Post-shipment, we'll supply you with the CE document, packing list, commercial invoice, and sales contract to facilitate customs clearance.
Q5: What should I do if I'm unfamiliar with the machine operation or encounter issues after receiving it?
A5:Don't worry, we provide a comprehensive user manual with detailed images and a USB disk to guide you step-by-step. Plus, we offer monthly updates to keep you informed on any advancements.
Q6: How can I obtain a sample to verify the quality and results?
A6: Simply send us your sample, and we'll conduct a free test for you.
Q7: When can I expect to receive a quotation?
A7:Your inquiry will be addressed with expertise and precision within 12 hours.

---
