40K 20W-30W Ultrasonic Cleaning Bath Vibration Head Parts Low Power Piezoelectric Sensor

Product Details

Product Description

Product Description
Email:may@pulisonic.com

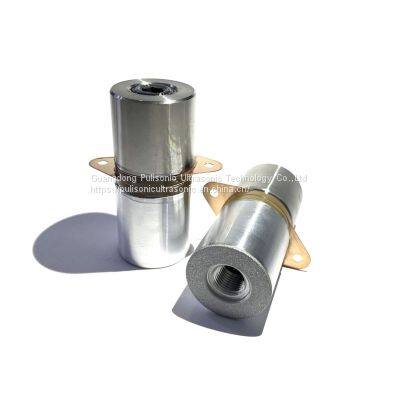

40K 20W-30W Ultrasonic Cleaning Bath Vibration Head Parts Low Power Piezoelectric Sensor
Introduction to Ultrasonic Transducers:
Ultrasonic vibrator, also called ultrasonic vibrating head, is a kind of ultrasonic transducer and the core component of ultrasonic cleaning machine. We call the whole connected ultrasonic transducer and horn the vibrator. Ultrasonic transducer is one of the important components in the ultrasonic cleaning machine and ultrasonic vibration plate, which largely determines the quality of the ultrasonic effect.
The ultrasonic vibrator produced by the company is a piezoelectric ceramic conversion device, which converts a high-frequency sinusoidal voltage signal into a high-frequency mechanical vibration signal. The vibration signal of the vibrator is converted into a cavitation effect, and the attachment of the object is quickly peeled off to achieve the purpose of cleaning.
The ultrasonic vibrators produced by the company are characterized by low heat generation, good thermal stability, low resonance impedance, good consistency between frequency and static capacitance, and complete and smooth waveforms of frequency and impedance.
Ultrasonic vibrators have multiple resonance points. Using the second and third resonance points of the vibrator, we have developed dual-frequency ultrasonic vibrators and three-frequency ultrasonic vibrators, which are effective in ultrasonic cleaning machines. The company can customize them according to your needs. Various types of ultrasonic vibrators can achieve a higher level of cleaning effect.
Our company's annual spot supply frequency: 17KHZ/20KHZ/22KHZ/25KHZ/28KHZ/33KHZ/40KHZ/53KHZ/60KHZ/80KHZ/100KHZ/120KHZ/200KHZ cleaning transducer.
Reference for frequency selection: low-frequency ultrasound (17-50KHZ) is suitable for most occasions or where the bonding strength of the dirt and the surface of the cleaning part is high, and high-frequency ultrasound (50-200KHZ) is suitable for the cleaning of precision parts. In order to achieve a more ideal effect, low frequency and high frequency ultrasound can be selected at the same time.
Widely used in the electronics industry, machinery industry, automobiles, electroplating, chemical fiber,
Optical, bearing and other industries. For example, cleaning magnetic cores, oil nozzles, auto parts, electroplating hardware tools, chemical fiber spinnerets, optical lenses, bearings, tools, tableware, medical equipment, precision hardware, watch parts, gold and silver jewelry, electronic components. The frequency vibration is strong and the density is uniform. It can quickly achieve the purpose of degreasing, sodium removal, decontamination, and descaling. In addition, it can also be used in chemical experiments to achieve catalysis, stirring, and rapid generator chemical reactions, etc. Wait

Specification List
Model	Frequency （KHz）	Capacitance （pF）	Resonance Impedance （Ω）	Size Radiation head*Height (mm)	Power （W）	Insulation resistance (2500VDC)
PLS-8QXHNQ-2540	40±0.8	3100±10%	≤30Ω	25*58	20w	≥100MΩ
PLS-8QXHNQ-3045	46±1.0	2400±10%	≤25Ω	45*43	35w	≥100MΩ
PLS-8QXHNQ-3517	17±1.0	2550±10%	≤28Ω	78*93	50w	≥100MΩ
PLS-8QXHNQ-3820	20±0.8	3800±10%	≤28Ω	59*99	60w	≥100MΩ
PLS-8QXHNQ-3823	23±0.8	3800±10%	≤28Ω	59*84	60w	≥100MΩ
PLS-8QXHNQ-3825*	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
PLS-8QXHNQ-3828*	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
PLS-8QXHNQ-3833*	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
PLS-8QXHNQ-3840*	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
PLS-8QXHNQ-4520*	21.5±0.8	5600±10%	≤20Ω	67*92	100w	≥100MΩ
PLS-8QXHNQ-4528*	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
PLS-8QXHNQ-5028	28±0.5	7200±10%	≤20Ω	67*68	120w	≥100MΩ
PLS-8QXHNQ-5020	20±0.5	4650±10%	≤25Ω	79*94	120w	≥100MΩ
PLS-4QXHNQ-2540	40±0.8	2400±10%	≤30Ω	25*58	20w	≥100MΩ
PLS-4QXHNQ-2540	40±0.8	2400±10%	≤30Ω	30*50	20w	≥100MΩ
PLS-4QXHNQ-2560	60±1.5	2300±10%	≤35Ω	30*35	20w	≥100MΩ
PLS-4QXHNQ-2565	65±1.5	2300±10%	≤35Ω	25*31	20w	≥100MΩ
PLS-4QXHNQ-3055	55±1.0	3100±10%	≤35Ω	30*45	35w	≥100MΩ
PLS-4QXHNQ-3050	52±2.0	3100±10%	≤35Ω	38*40	35w	≥100MΩ
PLS-4QXHNQ-3528*	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
PLS-4QXHNQ-3540*	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
PLS-4QXHNQ-3825*	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
PLS-4QXHNQ-3828*	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
PLS-4QXHNQ-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
PLS-4QXHNQ-3835	35±0.5	4800±10%	≤20Ω	45*55	60w	≥100MΩ
PLS-4QXHNQ-3840*	40±0.5	4800±10%	≤20Ω	48*51	60w	≥100MΩ
PLS-4QXHNQ-4520	22±0.5	7600±10%	≤20Ω	67*92	100w	≥100MΩ
PLS-4QXHNQ-4525	25±0.5	7600±10%	≤20Ω	67*76	100w	≥100MΩ
PLS-4QXHNQ-4528*	28±0.5	7600±10%	≤20Ω	67*68	100w	≥100MΩ
PLS-4QXHNQ-4540*	40±0.5	7600±10%	≤20Ω	55*53	100w	≥100MΩ
PLS-4QXHNQ-5028	28±0.5	9600±10%	≤20Ω	67*68	120w	≥100MΩ
PLS-4QXHNQ-3868	67±2.0	4800±10%	≤20Ω	50*65	50w	≥100MΩ
PLS-4QXHNQ-3880	79±1.5	4800±10%	≤25Ω	40*54	60w	≥100MΩ
PLS-4QXHNQ-38100	100±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
PLS-4QXHNQ-38120	120±1.5	4800±10%	≤25Ω	40*58	60w	≥100MΩ
PLS-4QXHNQ-35130	129±1.5	4200±10%	≤25Ω	36*54	50w	≥100MΩ
PLS4QXHNQ-38160	160±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
PLS-4AS-35165	165±5.0	4100±10%	≤60Ω	42*61	40w	≥100MΩ
PLS-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
Screw hole size (diameter * pitch * depth)M10*1.0*10

---
