Auto Laser Bridge Saw Granite Marble Cutting Machine

Product Description

Applications:
1.This machine is our newest model Bridge Saw, With steel structure, installed and connected wire already, easy for buyer use/move/maintenance.
2. The saw blade is mounted directly on the motor shaft (direct drive), which provides ease and rigidity.
3. The main motor is double speed motor and has good water protect.
4. It uses imported liner guide way in the two supports that improves cutting precision and longer life, and in order to get higher precision, on the beam there are two pcs imported liner guide way to hold the cutter head, and cutter head moving on these two guide way, moreover the cutter head moving up/down is also by ball screw and liner guide way;
5. The table can rotate 360 degree , blade can rotate 90degree horizontally, blade can tilt 0 to 60 degree vertically to cut angle or chamfer;
6. Beam slicing motor installed in the middle of beam back, different with common bridge saw which is installed in one side;

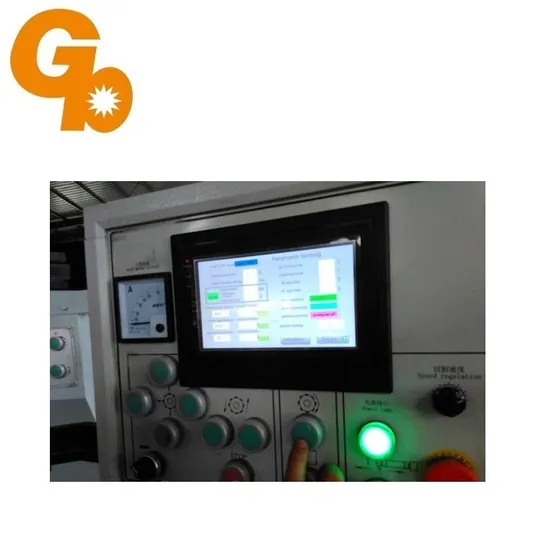

7. PLC, inverters are all from SIMENSE Specifications:

Name	unit	GBHW-500W	GBHW-500H
Blade diameter	mm	Φ350-Φ500	Φ350-Φ500
Max. cutting size	mm	3200*2000*120	3200*2000*120
Main motor	kw	15	15
Head rotating degree	º	0°~ 90°	0°~ 90°
Worktable rotation angle (by hydraulic)	º	90°or 360°	90°or 360°
Worktable upturning angle	º	0°~ 85°	0°~ 85°
Cutter head tilting degree	º	no	0º~45º
Dimension (L×W×H)	mm	5600×3500×2600	5600×3500×2600
Weight	Kg	5500	5500

---
