Middle Speed Paper Cup Making Machine with High Efficiency and Best Price in China

Product Description

PRODUCT DESCRIPTION

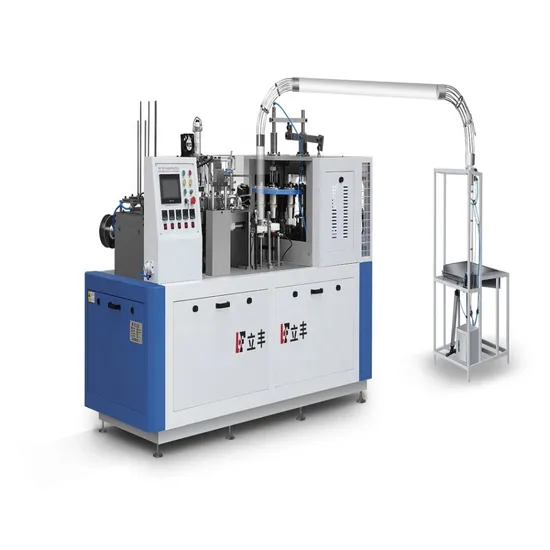

ZBJ-NZZ medium-speed paper cup forming machine is a multi station automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper feeding , sealing , oil injection , bottom cutting heating , knurling , curling and stacking . The machine adopting hot air system . PLC control , servo motor driving , full-automatic failure warning , counting , detection , stopping ,etc.
PRODUCT PARAMETER

voltage supply	380v,50hz
cup size	1.5-12oz
speed	60-70pcs/min
paper cup top diameter	min38mm-max94mm
paper cup bottom diameter	min30mm-max75mm
paper cup height	min30mm-max111mm
general power	9.5kw
net weight	2600kgs

LEADING TECHNOLOGY
1.The main motor use the best gear reduction unit .
2.Two times bottom paper feeding .
3.Operate panel use touch screen controlled .
4. Adopt full-automatic sealed lubricating system , which ensures the long-term uninterrupted high-speed running of the machine .
5.The parts all adopt standard producton , have high generality and good exchange performance , and facilitate equipment maintenance .
DETAILED IMAGES
A.
Use special 8CM wide stronger steel , heavy and good quality , machine net weight is 2600KGS , much stably when running .
B.
All machine only use shaft and gear system , but not chain system .
C.
Our machine use 3pcs Cam system , which easy be change paper fan heating edge side ( no other factories do like this )
D.
Sensor for control the bottom paper roll to avoid waste (If no paper fan feeding , the botttom paper roll will stop feeding itself )
AFTER SERVICE
PACKING
COMPANY INFORMATION
contact person: Joy liang

---
