Anti-Static Conductive Upe Chemical Hose for Convey Corrosive Chemical Materials

Product Description

Product Description
Flexible Chemical Rubber Hose is commonly handing strong and oxidizing acids, esters,ketons,alcohols ,solvents and chemicals whether by pressure or combination of pressure and vacuum, or gravity flow using in conveying and transferring a variety of products in plants, trucks, barges, ships, or storage tanks. Acid resistant EPDM tube, not oil resistant. Cover is heat, ozone,weather, and acid resistant. This chemical rubber hose is rated at full vacuum and features a reinforcement of a spiral steelhelix between synthetic textile plies, providing a working pressure of 100 to 150 psi.

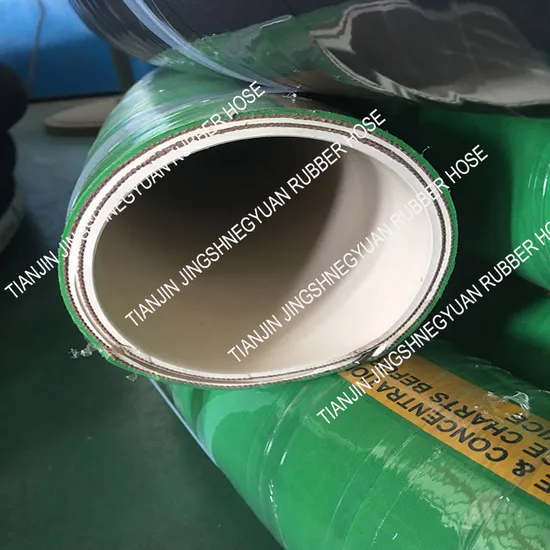

Detailed Photos

Product Parameters
Flexible Chemical Rubber Hose Specifications:
Inner rubber: XLPEReinforcement layer: high tensile textile or tire cord with steel wire helix,for suctionCover rubber layer: EPDM Synthetic rubberTemperature: -40°C to +80°CSafety Factor: 1:3
Size:1inch, 2inch, 3inch,4inch,6inch,8inch
Working pressure: 10bar /20bar/25bar or more
Connection: flange, camlocks, quick release couplingKey features: flexible, excellent weather, oil, ozone and abrasion resistance

Inside Diameter		Outside Diameter	Working Pressure		Burst Pressure		Nominal Weight	Bending Radius	Length
inch	mm	mm	bar	psi	bar	psi	kg/m	mm	m
3/4	19	31	10	150	30	450	0.57	200	40
1	25	36	10	150	30	450	0.71	250	40
1-1/4	32	44	10	150	30	450	0.95	250	40
11/2	38	51	10	150	30	450	1.20	250	40
2	51	64	10	150	30	450	1.55	300	40
2-1/2	64	79	10	150	30	450	2.17	400	40
3	76	90	10	150	30	450	2.54	400	40
4	102	117	10	150	30	450	3.44	500	40
6	152	168	10	150	30	450	5.41	600	40

NOTE: All The Sizes Of Industrial rubber Hose Can Be Customized As Your Requirments

Packaging & Shipping
Company Profile
Tianjin JingShengYuan Rubber and Plastic Products Co., Ltd is a manufacturer and exporter, which is located in Tianjin high-tech industry Garden, As expert in the filed of hoses over 15 years, with rich experiences, we serve a wide of range industries incuding offshore engineering, oil industry, tunneling, water treatment,chemical, mining and quarrying, aerospace, shipbuilding, food, drink and pharmaceutical, brewing, machine manufacturing, agriculture and garden. Our main products: Dredging Hose, Floating Hose, Marine LPG Hose, Marine Oil Delivery Hose, Oil Suction & Discharge Hose, chemical hose,Tank Truck Hose, Cement Hose, Sand Blast Hose, Air/Water Hose.
We serve both domestic as well as overseas companies, you can count on us to deliver high quality products, solid advice and fast and reliable service at a reasonable price.
Our Advantages
1.Professional manufacturing factory
2.Good quality&service control system, produced by skilled workers
3.Designing and researching hose assemblies according to customers'requirements
4.Timely and effective delivery
5.Flexible payment method.
Application
Flexible Chemical Rubber Hose is commonly handing strong and oxidizing acids, esters,ketons,alcohols ,solvents and chemicals
FAQ
Q1. What's the advantages of your rubber hoses?
Our rubberhose have been certified by API and ISO quality management system. With over 10 years' exporting experience, our products have got a good reputation of "good quality and reasonable price",sells far to Europe, America, Singapore, India, Middle East, Myanmar.
Q2. Can you produce rubber hoses with my own brand?
Yes, we have been offering OEM services since the beginning of our factory was built, so we got rich experience in this service.
Q3: How about your products quality?
Our every rubber hose is under a rigorous prosess and test for every step
Q4. How long does my order take to be delivered?
Big orders by sea usually takes 30 days, if your requested quantity is not very big, within 10 days can get any corner of the world with air freight. So it generally depends on the quantity of your order and our storage.
Q5. What about your production capicity?
We are OEM factory,we have more than 30 produtional lines and top class equipments and machines to assure our bulk quantity production,usually we can supply 300000meters within one month.

---
