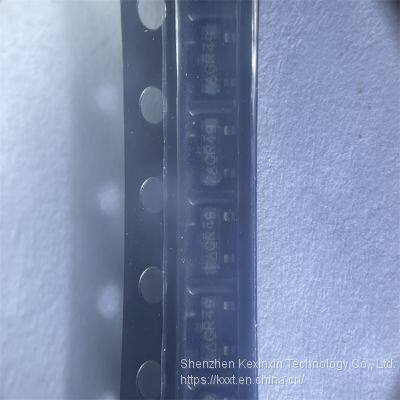

IRLML2803TRPBF Infineon Technologies MOSFET MOSFT 30V 1.2A 250mOhm 3.3nC LogLvl

Product Details

Product Description

Product Description
Factory
Mfr. #:
IRLML2803TRPBF
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package / Case: SOT-23-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 30 V
Id - Continuous Drain Current: 1.2 A
Rds On - Drain-Source Resistance: 400 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 1 V
Qg - Gate Charge: 3.3 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 540 mW
Channel Mode: Enhancement
Packaging: Reel
Packaging: Cut Tape
Packaging: KXXReel
Brand: Infineon Technologies
Configuration: Single
Height: 1.1 mm
Length: 2.9 mm
Product: MOSFET Small Signals
Product Type: MOSFET
factory pack quantiy: 3000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Width: 1.3 mm
Unit Weight: 0.000282 oz

---
