Asphalt Plant Mini Mobile Asphalt Mixing Plant Batch Machine

Product Description

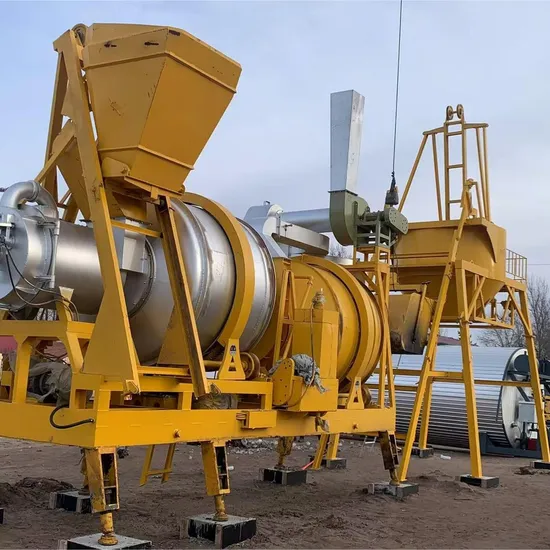

SLHB mobile asplalt plant
SLHB Series Mobile Asphalt Mixing Plant Features:
1. The integrated design of the intermittent drying drum and mixing drum significantly cuts down on investment costs for our customers.
2. Featuring positive drying and reverse discharging, with central induced air, the straightforward structure ensures ease of operation.
3. Advanced PLC programmable centralized control with touch screen operation allows seamless switching between automatic and manual modes.
4. The mobile chassis structure facilitates swift and easy transportation and installation.
5. Users can choose a coal-fuel combustion furnace tailored to their specific needs.

Model		SLHB-8	SLHB-10	SLHB-15	SLHB-20	SLHB-30
Capacity		8t/h	10t/h	15t/h	20t/h	30t/h
Total Power	Diesel	23KW	27KW	32KW	45KW	63KW
	Coal	39KW	43KW	51KW	70KW	84KW
Batcher		3×3m³	3×3m³	3×3m³	3×3m³	3×3m³
Storage hopper		5t	5t	5t	5t	9t
Product temp		120-180
Fuel consumption		Oil:5-8kg/t Coal:13-15kg/t
Control method		PLC

LQY mobile asplalt plant
1. Automatic measuring and batching station 2. Coal grinding and powder feeding device
3. Kerosene dual-purpose cyclone combustion furnace 4. Mineral material elevator
5. Drying drum 6. Mixer
7. Upper shell 8. Asphalt conveying and measuring
9. Mineral powder conveying and metering 10. Screw conveying
11. Finished product silo 12. Dust removal system
13. Trailer traveling system 14. Hydraulic support feet
15. PLC programmable electrical control cabinet 16. Control room

Model		LQY-10	LQY-15	LQY-20	LQY-30	LQY-40
Capacity		10t/h	15t/h	20t/h	30t/h	40t/h
Total Power	Diesel	42KW	54KW	64KW	105KW	125KW
	Coal	58KW	75KW	87KW	128KW	169KW
Batcher		3×3m³	3×3m³	3×3m³	3×3m³	3×3m³
Storage hopper		3t	5t	5t	9t	9t
feed hopper capacity (kg)		500	750	1000	1500	1800
barrel rotation speed (rotation/min)		18	18	16	16	16
sphere of application		asphalt powder, asphalt aggregate, asphalt concrete
Product temp		120-180
Fuel consumption		Oil:5-7.5kg/t Coal:13-15kg/t
Production cycle		3 minutes, i.e. 20 batches per hour

LQY Series Mobile Asphalt Mixing Plant Features:
1. The overall design of the intermittent drying drum and double horizontal axis mixing ensures thorough mixing and superior quality of finished materials.
2. Positive drying and reverse discharge make for a simple and user-friendly structure.
3. Featuring PLC programmable centralized control and touch screen operation, users can easily switch between automatic and manual modes.
4. The mobile chassis structure allows for rapid and convenient transportation and installation.
5. Users can opt for a coal-fuel combustion furnace based on individual requirements. Detailed Photos
Company Profile
Tai'an Chenli Construction Machinery Co., Ltd. is a technology-focused enterprise specializing in the development, design, manufacturing, engineering, and service of intelligent complete equipment for building materials. With an in-depth understanding of building intelligent equipment, Taian Chenli is dedicated to providing users with products that are practical, efficient, low-carbon, environmentally friendly, intelligent, and advanced. Adhering to the product philosophy of 'excellence in quality, simplicity to the extreme', we are committed to high-tech development and application in intelligent equipment, energy-saving, and environmentally friendly equipment for new building materials. Our leading products include cement concrete batching plants, mortar production lines, tower type sand making machines, and environmental protection equipment for batching plants. Our products are trusted by the market for their high standards and reliability, earning deep trust from users.

---
