European Style Natural Looking Straight Plastic Flower Pot Plant Pot Garden Planter Blossom Flowers Artificial Injection Moulding Making Machine

Product Description

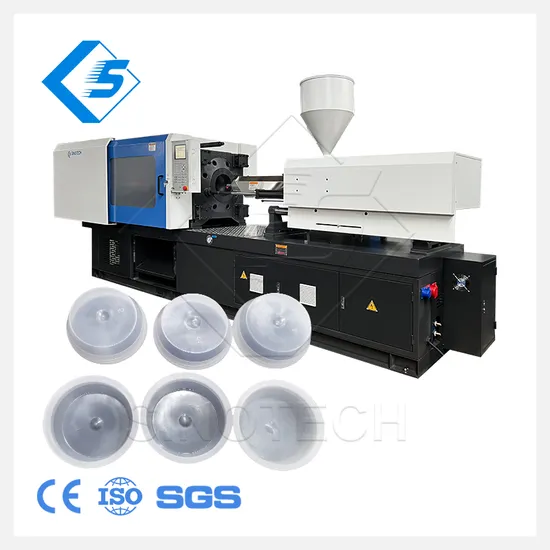

SINO-TECH ST-series injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-series injection molding machine with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Product Description
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 50 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.

Product Parameters

Item	260SElll
Screw diameter	mm	55	60	70
Theoretical shot volume	cc	713	848	1155
Shot weight (PS)	g	649	772	1051
Shot weight (PS)	oz	22.9	27.3	37.1
Length/Diameter ratio	L/D	22.9	21	18
Injection pressure	MPa	211	178	131
Injection rate	cm³/sec	237	282	384
Injection stroke	mm	300
Max. Screw speed	rpm	175
Plasticizing capacity (PS)	g/s	32.3	35.2	52.9
Injection unit force	Ton	9.1
Carriage stroke	mm	350
Clamping force	Ton	260
Max. daylight	mm	1210
Clamping stroke	mm	600
Distance btwn. Tie bars	mm	580*580
Min mould dimension	mm	400*400
Mould thickness range	mm	195-610
Ejector force	Ton	11.1
Ejector stroke	mm	180
No. of ejector pins	unit	13
Max. motor power	kW	26.7
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	172
No. of heater zones	unit	5+1
Heater input power	kW	18.9
Ultimate capacity	kw	46.6
Current	A	63.7
Net weight	Ton	8.55
Oil filling capacity	L	480

Detailed Photos
Company Profile

Packaging & Shipping
FAQ
Q: Can we visit your factory?Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai PudongInternational Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online byvideo.Q: How can we get the exact price of plastic machine?Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models withquotation.Q: Do you provide any spare parts with machine?Yes, we offer all necessary spare parts before shipment.(contact us for packing list )Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technicalsupport or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cyclewill vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customersproducts to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train thecustomer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we cansource the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
