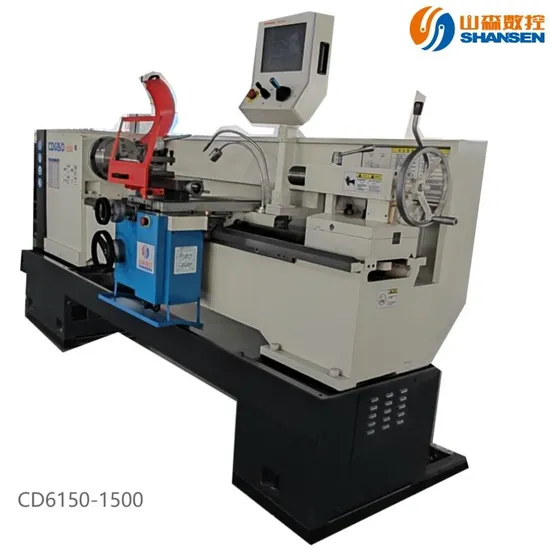

[CD6150-1500] Lathe Machine for Precision Work with 1500mm Workpiece Semi-Automatic Lathe

Product Description

Product model

Product Parameters

ltems	Unit	MOdel CD6150-1500
Swing over bed	mm	500
Swing over carriage	mm	290
Center height	mm	250
Max. workpiece length	mm	1500
Max. processing length	mm	1450
3-jaw chuck diameter	mm	250
Speed ranges	rpm	16-1600
Spindle bore	mm	82
Spindle taper	mm	Metric90
Spindle nose		C8
Top slide travel	mm	150
Cross travel (X axis)	mm	260
Longitudinal travel (Zaxis)	mm	1500
Number of stations		4
Tool shank size	mm	25*25
Quill travel	mm	160
Quill diameter	mm	75
Quill taper		MT5

Product Description
Our electronic lathe series, a hallmark of Shandong Shansen CNC Technology Co., Ltd, represents the pinnacle of our independent research and development capabilities. Boasting independent intellectual property rights, this revolutionary product serves as a superior alternative to traditional lathes. Seamlessly integrating mechanical and electrical coordination, our electronic lathe excels in performing internal and external cylindrical surface machining, conical surface and end face operations, as well as various thread processing tasks. Ideal for machining, tool manufacturing, equipment maintenance, and batch production, this lathe is crafted to elevate any processing workshop.
Features of the Electric Lathe
Achieve a remarkable 10% cost savings compared to traditional lathes.
Master the electric lathe within just 3 minutes, compared to the 3 years required for conventional lathe training.
Our electric lathe significantly outperforms traditional models, offering advanced capabilities such as turning threads of any pitch, cylindrical cycle cutting, thread cycle machining, and fixed-length machining.
Easily set pitch feed, processing length, cutting speed, and spindle speed without the need to exchange gears.
Detailed Photos
company
Certifications
FAQ
1.What type of company are you?
We are a manufacturer.
2.What can you buy from us?
Electronic lathe ,Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switchand Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE etc.,

---
