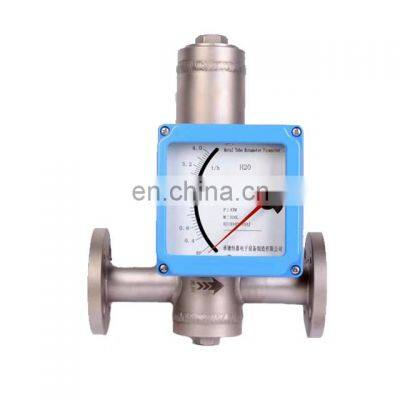

High temperature high pressure Float flow meter gas flow meter air flow meter Flowmeter ,Float Flowmeter, Metal Tube Float Flowmeter, Rotameter, Metal Tube RotameterFlow meter, Float Flow meter, Metal Tube Folat Flow meter, gas flow meter, air flow meter Product Descriptionused in the industrial automation process management to measure the variable areaflow. small size, wide application range, convenient usage.applicable for measuring the flows of liquids, gases and steam, especially measurement of low flow speed and small flow rate. 1.1 Functional Features of Metal Tube float flow meter Float flow meter gas flow meter air flow meterDesigned for measurement of small caliber and low-speed mediumWith reliable performance, few maintenance and long service lifeLow requirement for the straight tube sectionWidely measure ratio: 10:1Dual-line display, instantaneous/ cumulative flow rates displayed at the field With a keyboard on the indictor for convenient operation and settingAll in metal construction, designed for measuring corrosive medium of high temperature, high pressure and strongNon-contact magnetic coupling transmissionApplicable for inflammable and explosive occasionOptional charging modes: DC power supply or battery powerWith the functions of data recovery, data backup and power failure protectionMultiple parameters calibrating function.1.2 Specification of Metal Tube float flow meterFloat flow meter gas flow meter air flow meterCaliber of flow meterDN15, DN25, DN50, DN80, DN100, DN150Range of flowLiquid: 1.0~150000l/hGas: 0.05~3000m3/hMeasure Ratio10:1 20:1 (special)Caliber PrecisionGrade 0.5Grade 1.0 (special)Pressure ratingDN15, DN25, DN50: 4.0Mpa (Max: 20Mpa)DN80, DN100, DN150:1.6MPa(DN80:Max 10Mpa; DN100:Max 6.4Mpa; DN150:Max 4.0Mpa)Connection methodFlange,Flange standard: GB/T9119-2000Cable interfaceM20*1.5Protection gradeIP65Power supply24VDC (12~36VDC)Medium temperatureStandard:-30°C to +120°Chigh temperature: 120°C to 350°CEnvironment temperatureLocal type: -40°C to 120°CRemote-control type: -30°C to 60°COutput signal4~20mADC (two-wire configuration)attached HART Protocol allowedOutput load500 ohm (24V power supply)Storage requirementTemperature: -40°C to 85°CHumidity:≤85%Mark of explosion-proofIntrinsic safety type: ExiaIICT6explosion-proof type: ExdIICT6Pressure lossSee table of flow for detailed informationViscosity of mediumDN15:η<5mPa.sDN25:η<250mPa.sDN50~DN150:η<300mPa.sContact materialR1: 304, 1Cr18Ni9TiRo: 316, 0Cr18Ni12Mo2TiRL: 316L, 00Cr17Ni14Mo2TiTi: Titanium alloyRp: PTFE lining 1.3 Dimension and Type of Metal Tube float flow meterFloat flow meter gas flow meter air flow meter 1.4 Install of Metal Tube float flow meterFloat flow meter gas flow meter air flow meter1.5 Coding Description of Metal Tube float flow meterFloat flow meter gas flow meter air flow meter1 Construction type of sensor2 Material of contact areaA Vertical installation type H Horizontal installation type DS Bottom-charging-and-side-discharging SS Side -charging-and-side-discharging SD Side -charging-and-top-dischargingR1 304,1Cr18Ni9Ti R0 316,0Cr18Nil2Mo2Ti RL 316L,00Crl7Nil4Mo2Ti RP 1Crl8Ni9Ti PTFE inside Ti Titanium alloy3 Selection of indictors:M1 Mechanical pointer indicates the instantaneous flow rate; M3 Local LCD screen displays instantaneous and accumulated flow rates of the fluid; no 4~ 20mA transmission function; battery supply (service life of 6 months); M4 Local pointer indicates the instantaneous flow rate and LCD screen displays instantaneous and accumulated flow rates of the fluid; transmissibly outputing two-wire configuration standard signal of 4~20mA; explosion-proof design; explosion-proof mark: Exia II CT6. Optional HART protocol function; M5 Explosion-isolated type design; explosion-proof mark: Exia II CT6; others are the same as M4.4 Explosion-proof type5 Measuring medium:i Intrinsic safety type(ExiaIICT6) d Explosion-proof type(ExiaIICT6)L Liquid measurement Q Gas measurement6 Additional functions of the sensor:T Heat preservation/ cooling jacket G High-temperature type (When the temperature of measured medium is higher than 120℃, special treatment will be performed by transmissible indictor.) Y High-pressure type (higher than the nominal pressure in the technical parameters)7 Additional functions of the indictor:K1 Lower limit alarm K2 Upper limit alarm (Only available for M1 type indictors)8 Nominal diameter50 DN50 (Caliber of process pipelines) Related productsUltrasonic flow meterElectromagnetic flow meterLevel meter Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Our Services1. 18 Month's Warranty.2. MOQ:1 set.3.Ready to ship out within by sea,TNT,DHL,FedEX,as soon as we receive payment.4. We accept T/T, Western Union, PayPal & Secure Payment. FAQFAQ for Our Company1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment.2. MOQ:1set3. We accept T/T. Western Union.PayPal & Secure Payment4. We offer 18 Month's Warranty on all product5.For more information please contact us by mail ndt at Or by Skype:tmeasurement01 Or by Whatsapp:18840951958 Or by Phone: 86-411-396850796. Service express company:TNT/DHL/FedEX.---------------------------------------------------------Welcome to our website! -------------------------------------------Thanks for your attention and welcome your inquiry!For more specific information and applications, please contact our technical support below:
>>
