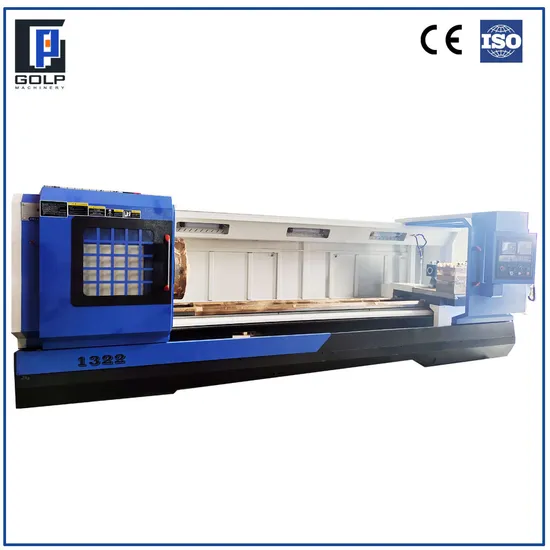

2m 1m CNC Pipe Internal and External Thread Threading Turning Lathe Machine

Product Description

Features
Δ this machine can also process metric thread, inch thread and module thread, and cut all kinds of spindle and plate parts, which can cover the function of common CNC lathes.
Δ pipe thread CNC lathe is economic and convenient and can effectively fulfill machining work of all kinds of straight pipe thread and taper pipe thread, such as pipe fittings, straw, casing pipe, tubing pipe, mine pipe, pump tube etc.
Δ Products of this series adopt horizontal flat lathe with whole bed casting structure, lathe bed, lathe head, lathe saddles, lathe legs and other basic parts are all cast with resin sand, valid artificial treatment makes the whole lathe with good stability;
Δ The feeding system has servo motor, precise ball screw, high rigidity and precision of composite bearing structure, which guarantees the accurate positioning and efficient transmission;
Δ High speeds of the spindle, wide range of speed-changing, and low noise. Two gears variable-speed and variable-frequency motor in main transmission make it possible to shift freely;
Δ The follow-up operation box makes it convenient for the operator to tool setting at a near distance, which represent the humanized design;

Specifications	GLP1322
Max. swing over bed(mm)	800
Max.swing over cross slide(mm)	480
Bed width	600
Max. turning length(mm)	850
Form	3 gear mechanical transmission Variable speed
Rank of spindle speed	No grade
Range of spindle speed(r/min)	25-500
Hole diameter of spindle	190
Model of main motor	YVP160L-4-15KW
Maximum route of knife rest(mm)	X:480 Z:1000
Ball-screw diameter * pitch (mm)	X:3208 Z:6312
Speed of quick-travel(mm/min)	X:4000 Z:5000
Positioning accuracy(mm)	0.032
Repeating accuracy (mm)	0.011
Precision of work piece	IT6-IT7
Surface roughness	Ra1.6
Sleeve diameter of tailstock(mm)	100
Sleeve trip of tailstock(mm)	250
Cone hole taper tailstock's sleeve	Morse6#
Standard configuration	Four-station vertical electrical knife rest
Alternative configuration	horizontal Eight-station electrical knife rest
Resetting accuracy (mm)	0.01
Length of section of knife handle (mm)	32×32
Standard configuration	FANUC OI TF5
Alternative configuration	GSK,SIEMENS,HNC
Length*width*height (mm)	3500×2000×2000
Net weight (kg)	4200

cnc turning lathe
You can click on the image above for details.
WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear shaping machine, gear grinding machine ,gear chamfering machine ,gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q: What is the warranty period?
A: We offer a warranty service for all purchased products ranging from 12 to 24 months, ensuring you are worry-free during the use of our equipment. Choosing us means choosing a long-term and reliable partner.
Q: What is the delivery time?
A: For in-stock items, we guarantee delivery within 1-2 months; for custom-manufactured products, we commit to delivering within 5-6 months. No matter how urgent your needs are, we can respond quickly to ensure your project proceeds on schedule.
Q: Do you provide after-sales service?
A: Yes, we provide comprehensive after-sales services, including but not limited to timely supply of spare parts, online technical support, on-site installation and commissioning, as well as operational training. We strive to offer you the most thoughtful service support to ensure the efficient operation of equipment and assist in the continuous growth of your business.
Q: What additional products or services do you offer?
A: we also provide "turnkey" engineering services, customizing automated production lines according to customer needs to ensure seamless integration with existing production processes. We are committed to offering complete solutions to every customer, helping you achieve maximum production efficiency.

---
