Jiusheng Factory Hot Selling Customizable ABC Extruder PE Film Blowing Machine with High Quality

US$160,000.00-220,000.00 1 Set (MOQ)

Basic Info.

Model NO.
JSFHJCM-3-1800
Type
PE Film Blowing Machine
Raw Material
LDPE,LLDPE,Mlldpe,HDPE and Mixing
Maximum Folding Width of Film
1600mm
Screw Diameter
65/55/65
Automation
Automatic
Computerized
Computerized
Machine Weight
40t
Certification
Patent Certificate
Product Name
3-Layer Complex Film Blowing Machine
Model No.
Jsfhjcm-3-1800
Brand
Jiusheng
Die Head Diameter
400mm
Air Ring Diameter
450mm
Main Motor Power
30kw*1 45kw*2
Whether to Support Customization
Support Custom
Keyword
Film Blown Machine
Delivery Time
1-3 Month
Payment
T/T
Specification
1 SET
Trademark
JIUSHENG
Origin
China
HS Code
8477301000
Production Capacity
100PCS/Year

Product Description


Jiusheng recommends blown film machine
↓ ↓ ↓
main parameter
Model SJFHJC-65/55/65-1800 SJFHJC-65/75/65-2000 SJFHJC-75/65/75-2200
Suitable material LDPE, LLDPE, mLLDPE, EVA and Mixing
Film layer 3 layers
Film thickness 0.02-0.15mm
Max film width 900-1600mm 1200-1800mm 1300-2000mm
Max output 250-300kg/ h 300-350kg/ h 350-400kg/ h
Screw diameter φ65/ φ55/ φ65 φ65/ φ75/ φ65 φ75/ φ65/ φ75
Screw L, D ratio 32:1 32:1 32:1
Die head diameter φ400mm lBC φ400/450mm IBC φ450/500mm lBC
Air ring Diameter φ450mm φ450/500mm φ500/550mm
Main motor power 30kw*1 45kw*2 45kw*2 55kw*1 45kw*1 55kw*2
IBC system P+F probe and WECON system
EPC system Center or side ultrasonic photoelectric type
Screen changer Double station manual quick net change+pressure gauge
Winding method Surface center clearance three in one winding or auto back to back friction winding
Tension control system Tension sensor
Overall Dimension
(L*W*H)
14500*7000*12500 14500*7500*13500 14500*7500*14500

Process Flow Diagram

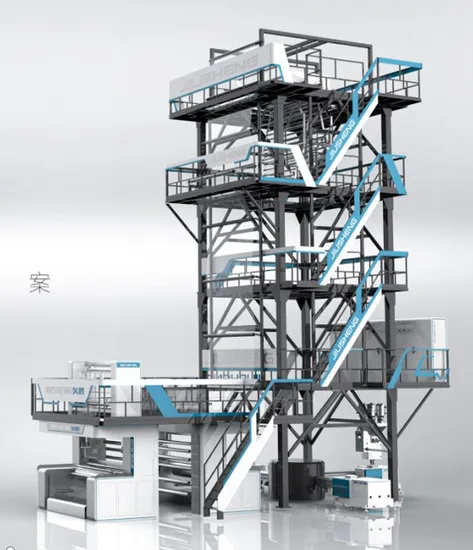

Automatic ABC(IBC)3-Layers Co-extrusion Center Gap Winding System Film Blowing machine
Jiusheng Product Album
Our Equipment in Factory
The Patent Certificate We Obtained
Main Product Series
1.barrier film

2.composite base film


3.protective film


4.self-adhesive film

Production Site

Spare Parts and Service


Q&A
Q1: How about after-sales service? How long is the machine warranty? A1: We guarantee 1 year after-sale service once you received our machine, you can call us or send us any questions about the machine.
Q2: How long is your delivery time? A2: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q3: How long can your machine work continuously? A3: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q4: Does your factory need agents? What are the thresholds? A4: We need agents, welcome to inquire for more details.
Q5: Where is your factory? How can I visit there? A5: We are located in Wuhan City, Hubei Province.We have convenient transportation and we are willing to show u around our factory.
