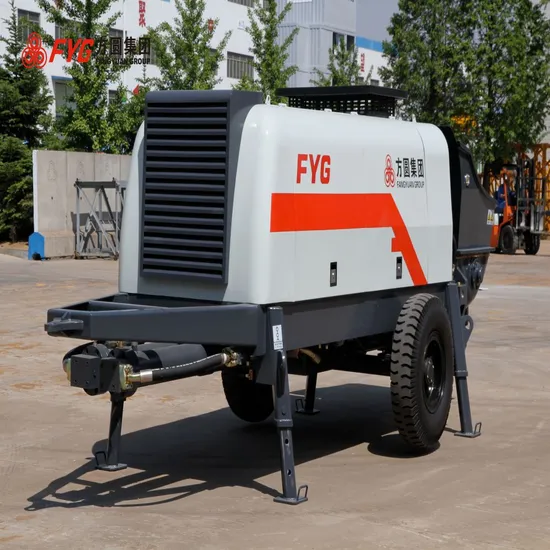

Hbts60-13-118 Max Flow Rate 80cbm/H Concrete Pump

Product Description

Item		Unit	HBTS60-08-75	HBTS60-13-90	HBTS60-13-118	HBTS80-13-110	HBTS80-16-132	HBTS80-16-195
Maximum flow rate	High pressure	m³/h	60	60	60	40	45	67
	Lower pressure			74	80	80	80	95
Max.output pressure	High pressure	MPa	8	13	12.5	13	15.7	15.7
	Lower pressure			7.3	7.3	8	9.2	9.2
Suitable Concrete Specification	slump	mm	80-230,better:160-200
	Aggregate size	mm	pebble≤40,macadam≤30
Load hopper	Volume	L	400	500	500	500	500	500
	Height	mm	1375	1375	1375	1375	1375	1375
Mode of distribution			"S"Valve
Oil tank capacity		L	400	500	500	500	500	500
Power system	Model		Y280S-4	Y280M-4	BF4M1013	Y315S-4	Y315M-4	BF6M1013
	Power	kw	75	90	118	110	132	195
Pipe diameter		mm	φ125	φ125	φ125	φ125	φ125	φ125
Pipe cleaning			Compressed air or water washing
Delivery cylinder*stoke		mm	φ180*1200	φ200*1800	φ200*1800	φ200*1800	φ200*1800	φ200*1800
Dimension(L*W*H)		mm	4860*1830*2000	6440*2060*2150	6770*2060*2500	6440*2060*2150	6770*2060*2150	6770*2060*2500
Weight		kg	4500	6300	7100	6400	6500	7200

---
