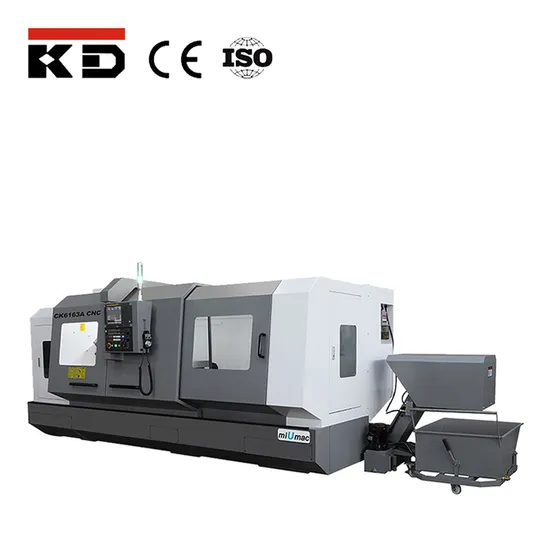

Electric ISO 9001 Approved engine Lathe Machine Factory cnc engraving machines Product Description
| MODELS | CK6163A | CK6180A |
| CAPACITY | | |
| Max.swing over bed | Ф630mm | Ф800mm |
| Max.swing over carriage | Ф360mm | Ф500mm |
| Width of bed | 560mm |
| Distance between centers | 1500/2000/3000 |
| Max turning length | 1400/1850/2850mm |
| TRAVEL | | |
| Max.cross travel(X) | 440mm | 500mm |
| Max.longitudinal travel(Z) | 1500/2000/3000mm |
| FEED | | |
| Rapid feed for axis X | 8m/min |
| Rapid feed for axis Z | 10m/min |
| SPINDLE | | |
| Spindle nose | D11 |
| Spindle bore | Ф104mm |
| Taper bore of spindle | Metric 1:20 |
| Steps of spindle speed (manual) | 4 |
| Spindle speed | 40~105, 80~205, 195~500, 385~1000rpm |
| TOOL POST | | |
| Tool post stations | 4-way |
| Tool cross section | 40×40mm |
| TAILSTOCK | | |
| External diameter of tailstock sleeve | Ф100mm |
| Taper bore of tailstock sleeve | M.T.NO.6 |
| Max travel of tailstock sleeve | 230mm |
| OTHERS | | |
| Min. input | 0.001mm |
| Main motor power | 11kw |
| Coolant pump power | 370w |
| Overall dimensions(L×W×H) | (3700/4200/5200)×1660×1820mm |
| Net weight | 3700/4780/5280kg |
