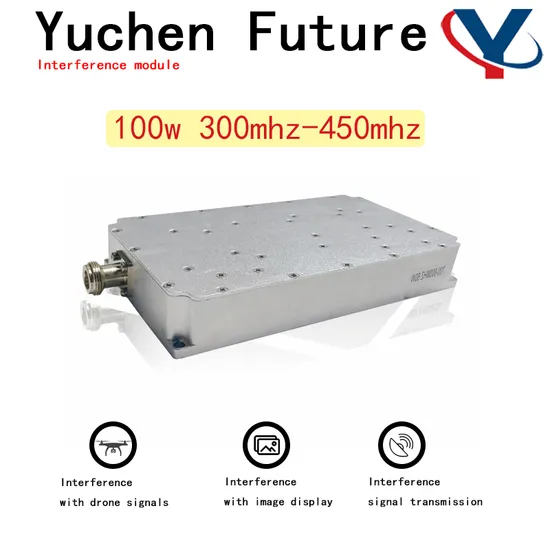

Power Amplifier Customized Frequency 300-450MHz 100W RF Module Anti Drone Module

Product Description

Power Amplifier Customized Frequency 300-450MHz 100W RF Module Anti Drone Module
100W Interference Power Amplifier Technical Data Sheet Radio Frequency Index

Test item				Technical parameters	Unit	Remark
Frequency Range				400M-6G	MHz	Customized Frequency
Operating Voltage				28	V	28-32V
Maximum Power Output				50±0.5	dBm	100W@≤7A
Gain				45±1	dB	peak-to-peak value
In-band fluctuation				≤2	dB	peak-to-peak value
Spurious Emission	Operating In-band			≤-15dBm/1MHz	dBm	Center Frequency add CW Signal to Maximum Power Output Test
	Operating Out-of-band		9KHz~1GHz	No noise wave above normal base	dBm
			1G~12.75GHz		dBm
Output VSWR				≤1.30		No power up:Standard Grid Output -10dBm
				≤1.30		Power up:Dual Directional Coupler Test
high-low temperature test		Operating Ambient Temperature		-10~+55	ºC	Cold Start
		Gain Stability		±1.5 @-40ºC~+55ºC	dB
		Power Stability		±1 @-40ºC~+55ºC	dB
Power Supply Requirement				≥8A@+28Vdc;		Continuous Wave Output 100W
Power Supply Port				Power Cable:Red positive Black negative		Red positive Black negative
RF Output Connector				SMA		SMA External Screw Base
Warming				Temperature,VSWR,Under Voltage/Power,Over Current

Appearance

Frequency (MHZ)	Power (dBm)	Current (A)	Voltage (V)	Dimensions(mm)	Weight (kg)
400-500	50±1	≤7	32-36	94*170*27	0.8
500-600	50±1	≤7	32-36	94*170*27	0.8
600-700	50±1	≤7	32-36	94*170*27	0.8
720-830	50±1	≤7	32-36	94*170*27	0.8
830-930	50±1	≤7	32-36	94*170*27	0.8
930-1030	50±1	≤7	32-36	94*170*27	0.8
1170-1280	50±1	≤7	32-36	94*170*27	0.8
1550-1620	50±1	≤7	32-36	94*170*27	0.8
2400-2500	50±1	≤7	32-36	94*170*27	0.8
5100-5300	50±1	≤10	32-36	94*170*27	0.8
5700-5900	50±1	≤10	32-36	94*170*27	0.8

Are we a factory or a trading company?
Answer: We are a factory located in Longgang District, Shenzhen. Welcome to come and visit us.
What is our delivery deadline?
Answer: All products start production after placing an order and are delivered within 5-10 working days. For bulk purchases (with different delivery times during low and peak seasons), please contact us for more information.
What is our payment method?
Answer: T / T, western union, PayPal, Credit cards, etc., please contact us for details.
What is our mode of transportation?
Answer: There will be methods such as land transportation, sea transportation, and air transportation. Excellent freight forwarder, accurate and fast.
How can you establish a long-term and good relationship with our business?
Answer: We maintain good quality and competitive prices to ensure that our customers benefit
We respect every customer, just like our friends, and sincerely do business and make friends with them, no matter where they come from.
What if our product has defects?
Answer: We strictly ensure our quality and factory standards, but there may be damage during logistics transportation. If there is a problem, please take photos or videos and contact us as soon as possible, so that we only know where the problem is, to ensure subsequent repairs and parts delivery.

---
