9m Height Dual Mast Manaul Pushing Vertical Lift

Product Description

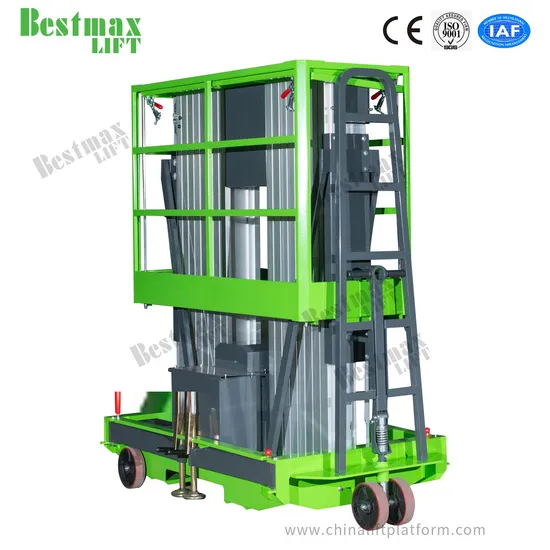

9m Height Dual Mast Manaul Pushing Vertical Lift
Description
By the mast quantity: single mast, double mast, triple mast, quadruple mast and six masts (four plus two) are ranked in the product range of man pushing around aerial work platform
Features non-marking tires and anodized aluminum mast. Easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.
Power supply standard is AC version (110V or 220V) and DC chargeable battery version (12V or 24V) or AC &DC version are both optional. Extendable platform can be made also for double mast type.
DC battery version always comes with battery charger, batteries can be recharged using automatic, built-in charger, and battery discharge indicator warns of low charge conditions.
The lifting height ranges from 4m to 22m for different mast Aluminum Aerial Work Platform and the loading capacity varies from 130Kg to 300Kg.
Application
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.
Main Configurations of Man Pushing Around Aluminum Aerial Work Platform
Safety Features of Man pushing Around Aluminum Aerial Work Platform Toe protection boards on the platform Anti-skid deck on the platform Auxiliary Lowering Dual limit switch for safety Operation voltage at 24V Safety belt holding Anti-burst valve on the cylinder Emergency stop button both on platform and ground Short Circuit and leakage protection system for AC version Fuse for DC version for electric shock protection
Optional Configuration for Man Pushing Aluminum Aerial Work Platform
Major Parameter of Single Mast Aluminum Aerial Work Platform

Model NO.	Working Height (m)	Loading Capacity (Kg)	Platform Size (m)	Lifting Power (Kw)	Weight (Kg)	Dimension (m)
GTWY6-100	8	130	0.60x0.55	0.75	260	1.38x0.80x1.65
GTWY8-100	10	130	0.60x0.55	0.75	300	1.38x0.80x1.98
GTWY9-100	11	130	0.60x0.55	0.75	326	1.44x0.85x1.98
GTWY10-100	12	130	0.60x0.55	0.75	400	1.44x0.85x1.98

Major Parameters of Double Mast Aluminum Aerial Work Platform

Model NO.	Working Height(m)	Loading Capacity(Kg)	Platform Size(m)	Lifting Power (Kw)	Weight(Kg)	Dimension(m)
GTWY6-200	8	200	1.18x0.62	1.1	380	1.38x0.85x2.00
GTWY8-200	10	200	1.18x0.62	1.1	480	1.38x0.95x2.00
GTWY9-200	11	200	1.38x0.62	1.1	548	1.58x0.95x2.00
GTWY10-200	12	200	1.38x0.62	1.1	610	1.68x0.95x2.00
GTWY12-200	14	200	1.48x0.62	1.1	650	1.68x0.95x2.00
GTWY14-200	16	150	1.48x0.62	1.1	650	1.68x0.95x2.00

Major Parameters of Triple Mast Aluminum Aerial Work Platform

Model NO.	Working Height(m)	Loading Capacity(Kg)	Platform Size(m)	Lifting Power (Kw)	Weight(Kg)	Dimension(m)
GTWY10-300	12	300	1.40x0.88	2.2	900	1.78x1.10x2.05
GTWY12-300	14	300	1.40x0.88	2.2	950	1.78x1.10x2.05
GTWY14-300	16	250	1.53x0.88	2.2	980	1.90x1.10x2.32

Major Parameters of Quadruple Mast Aluminum Aerial Work Platform

Model NO.	Working Height(m)	Loading Capacity(Kg)	Platform Size(m)	Lifting Power (Kw)	Weight(Kg)	Dimension(m)
GTWY10-400	12	300	1.40x0.80	2.2	950	1.78x1.25x2.05
GTWY12-400	14	300	1.40x0.80	2.2	980	1.78x1.25x 2.32
GTWY14-400	16	200	1.40x0.80	2.2	1000	1.90x1.25x2.32
GTWY16-400	18	200	1.40x0.80	2.2	1100	2.28x1.35x2.82

Major Parameters of Six Mast Aluminum Aerial Work Platform

Model NO.	Working Height(m)	Loading Capacity(Kg)	Platform Size(m)	Lifting Power (Kw)	Weight(Kg)	Dimension(m)
GTWY16-420	18	150	1.45x0.90	2.2/1.1	1200	2.28x1.35x2.18
GTWY18-420	20	150	1.45x0.90	2.2/1.1	1400	2.28x1.35x2.42
GTWY20-420	22	150	1.55x0.90	2.2/1.1	1780	2.50x1.40x2.62
GTWY22-420	24	150	1.55x0.90	2.2/1.1	2000	3.00x1.60x2.82

Tilting type can be made for height limitation place
Company Introduction
As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Certificates
Factory Equipment
Customer Visiting
Other Related Products
Why choose Our Mobile Vertical Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 20 Years Experience
Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.
A: How long is your quality guarantee period?
B: We have one year warranty.

---
