PTFE Lined Flexible Expansion Joint Axial Bellows Expansion Flexible Compensator for Pipe

Product Description

PTFE Lined Flexible Expansion Joint axial bellows expansion flexible compensator for pipe
Product Description

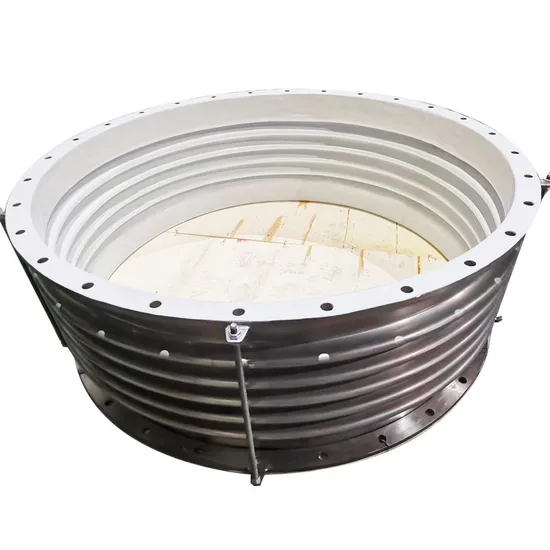

A: PTFE lined expansion joints combine the properties of metal and PTFE into the most advanced expansion joint available for highly corrosive piping systems.
B: PTFE expansion joints are flexible connectors that allow movement in a rigid piping system. Our expansion joints are made of contour moulded PTFE, providing exceptional corrosion resistance and flex-life. The flexible liner is moulded over the metallic sealing face which eliminates troublesome separate gaskets and reduces the chances of bacteria build up. Different numbers of convolutions accommodate varying degrees of misalignment, axial travel and angular deflection between components.
Features
1. Excellent chemical resistance
2. High and low temperature resistance(-100°C to 260°C)
3. High pressure resistance
4. Anti-aging,long life without an aging problem
5. Wear resistance, high lubrication
6. Anti-corrosion ,non-stick, easily cleaned
7. Fire resistance
8. Electrically insulated
9. Excellent flexibility
Structure
Inside: PTFE hose, the hose can be smoothbore PTFE , and also convoluted , for high and low temperature used, anti-corrosive, non-stick.
Outside: Stainless steel braided. High pressure resistance. All kinds of couplings can be available.

Product Parameters
PTFE Expansion Joint (HS-type Positive Pressure Resistant)

DN (mm)	Model	Conv. Num.	LO (mm)	△X (mm)	△Y (mm)	△θ (°)	PN (MPa)
25	FXQ25*3	3	78	±15	8	25	0.25
32	FXQ32*3	3	78	±15	10	25	0.25
40	FXQ40*3	3	92	±18	14	25	0.25
50	FXQ50*3	3	98	±18	15	25	0.25
65	FXQ65*3	3	105	±20	16	25	0.25
80	FXQ80*3	3	110	±20	16	25	0.25
100	FXQ100*3	3	115	±25	17	20	0.25
125	FXQ125*3	3	123	±27	17	15	0.25
150	FXQ150*3	3	123	±27	16	13	0.15
200	FXQ200*3	3	150	±27	15	10	0.15
250	FXQ250*3	3	160	±27	12	10	0.15
	FXQ250*4	4	200	±33	14	12	0.15
300	FXQ300*3	3	180	±27	8	8	0.10
	FXQ300*4	4	228	±33	10	10	0.10

Solid-molded PTFE expansion joints are corrosion-resistant and made to withstand the high pressure and temperature in a compact, space-saving design. Standard sizes from 1" to 12" with two, three, or five convolutions; available in sizes up to 48". PTFE expansion joints can operate with temperatures from -300 F to 400 F from a full vacuum to 160 PSI depending on the type and number of convolutions.

Quality Control Quality is the life of an enterprise" the company promotes the enterprise internally culture, solid quality assurance system, conveying the spirit of enterprise to the world, establish a brand concept. In order to ensure product quality, the company is equipped with ding first-class production theory.
Certifications Positive comments from our clients
Packaging & Shipping
Company Profile
We are a professional manufacturer of all types of metal flexible metal hose and machinery with more than 35 years of history,such as PTFE hose,corrugated metal hose, square lock and interlock hose/ conduit, expansion joint, hose making machine, etc...The hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power,cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, pipeline construction,central air conditioning, aerospace and other industries. Our products have exported to many countries such as Russia, Ukraine,USA, Australia, New Zealand, Poland, etc..

FAQ We need to know the following information before we send quotation for the conduit:
1.Nominal diameter;
2.Total length;
3.Connection types;
4.Operating temperature & pressure;
5.Materials for both hose and connections should be specified.

---
