New Design Hinge Offset Disc Harrow for Farm Tractor Plough Machine

Product Description

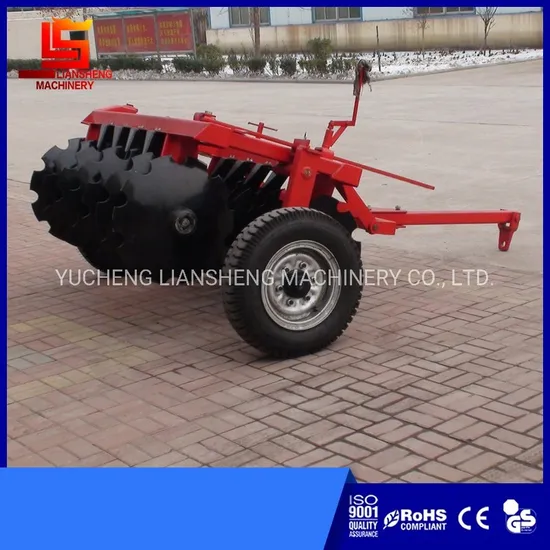

New design hinge offset disc harrow for farm tractor plough machine
TSM heavy duty trailed disc harrow trailed with tractor. You also can adjust the deflection angle by yourself.
It is suitable for the operations such as soil crushing after plowing, presowing plowing, chessom, clay fertilizer blending, stubbing in the light soil, etc. The disc harrow has the advantages of reasonable structure, firmness and durability, convenient use, easy maintenance, great capacity of soil piercing and crushing, leveled field surface after plowing, etc.

Model	Unit	TSM-12	TSM-14	TSM-16	TSM-18	TMS-20
Working width	mm	1500	1750	2000	2300	2570
Working depth	mm	200	200	200	200	200
No. of disc		12	14	16	18	20
Type of disc		Notched	Notched	Notched	Notched	Notched
Disc diameter	mm	660	660	660	660	660
Total weight	KG	800	900	1000	1150	1300
Power required	hp	75-80	80-90	90-100	100-120	120-140

RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below: Contact: Allen Gao

Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China

---
