Vacuum Conveyor Drying Machine Desulfurization Weave Spiral Polyester Filter Press Belt

Product Description

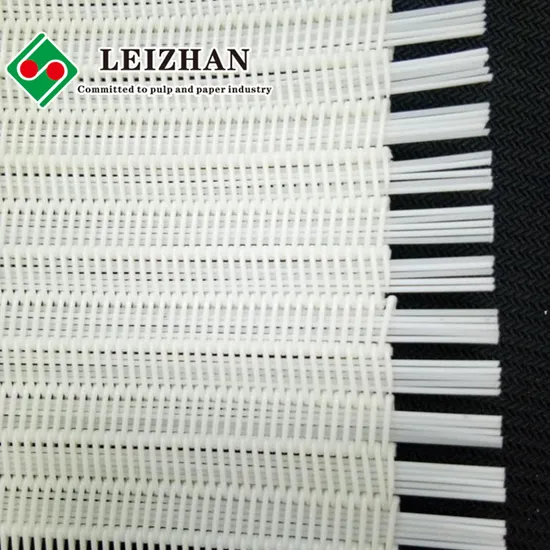

Product Description Pressure filtration spiral belt
The filler wire to join the spiral ring, so that the air permeability is reduced, reducing the net surface material loss.
The Spiral Press Filter Belt is ideal for industries not only for the printing but also for the food industry, pharmaceutical, process hides, salt and the clothing industry. Due to the fabric make up of the Spiral press filter, it lowers air permeability while increasing the opening thus reducing raw material loss from the open mess. The filter belt is use in a wide range of equipment including high-pressure press filter washer, liquid pulp separator, netting belt coal washer and horizontal belt washer.
Application Mainly used for the belt dewatering press filter with.
Applies to the food, pharmaceutical, chemical, alcohol,
vinegar, coal washing, mining, paper pulp washing, sludge
dewatering and drying industry.
Product Parameters

Type	Spiral loop width mm	Filament diameter mm			Tensile strength N/cm	Weight Kg/m²	Thickness mm	Air permeability m³/m²h	CFM 127/pa
		Spiral ring	Connection	Filler
5080A1	5.2	0.50	0.80	0.60x3	1800	1.50	2.10	4480	280
6280A1	5.2	Flat yarn 0.62*0.30	0.80	Flat yarn 0.8x2.4	1600	1.40	1.90	3600	225
6890A1	8	0.68	0.90	0.80x4	2000	2.00	2.45	6080	380
6890B1	7.15	0.68	0.90	0.90x3	2000	1.90	2.45	5760	360
6890B2	7.15	0.68	0.90	0.80x3	2000	1.85	2.45	7750	484
6890B3	7.15	0.68	0.90	Flat yarn 2.1*0.80	2000	1.80	2.45	9000	563
6890B4	7.15	0.68	0.90	Flat yarn 2.4*0.88	2000	1.85	2.45	8000	500
6890B5	7.15	0.68	0.90	Conductive carbon filament	2000	1.60	2.45	10000	625
9090A1 Red	8	Flat yarn 0.90*0.60	0.90	0.80x3	1800	2.20	2.80	5500	345
9090A2	8	0.90	0.90	0.90x3	2300	2.30	3.03	7500	468
90110A1	10	0.90	1.10	1.0x4	2000	2.40	3.15	6240	390
PA90110A2 Anti-alkali	10	0.90	1.10	1.2x3	2000	2.25	3.15	6240	390
100100A1	9.15	1.0	0.90	1.0x4	2000	2.50	3.60	5000	315
120130A1	1.2	1.20	1.30	1.2x3	2600	2.85	4.30	7500	468

Workshop Display
Related Product Spiral Dryer Screen:
https://leizhan.en.made-in-china.com/product/EjOfJPqTgwah/China-High-Quality-Polyester-Spiral-Dryer-Screen-Spiral-Dryer-Mesh-Spiral-Dryer-Fabric.html
Sludge dewatering belt:https://leizhan.en.made-in-china.com/product/WwXGQqedEEUS/China-Sludge-Dewatering-Belt-Mesh-Wire-Blanket-Polyester-Spiral-Mesh-Conveyor-Belt.html
Anti-alkali belt:https://leizhan.en.made-in-china.com/product/cdQTswiYOJAx/China-Anti-Alkali-Filter-Belt-Anti-Alkali-Belt-for-with-High-Quality-and-Best-Price.html
Desulfurization belt:https://leizhan.en.made-in-china.com/product/kOxGJWeYFQtn/China-Polyester-Desulfurization-Belt-Filter-Conveyor-Mesh-Screen-Wire-for-Vacuum-Filter-Machine.html

About Us LEIZHAN INTERNATIONAL GROUP is specialized in the design, manufacture and sales of paper machinery and its spare parts. We located in Jiangsu,founded in 2002.The Group currently employs 400 people, including about 60 special product development teams, including product designers, product engineers, and so on. As a professional manufacturer, the group focuses on the pulp and paper industry, has sophisticated CNC machining equipment,complete product testing methods, advanced ability of project designing, researching and developing, processing and manufacturing of products. We provide customers with the best quality machinery and equipments. Our team and engineers can provide designing plans according to the customers' needs and budgets of the project to retrench the project investments, to easy the operation of the project and to quick the effects. Also,we can send experienced engineers to guide the installations for the customers and to solve customers' worries.
Customer's satisfaction is our goal !

---
