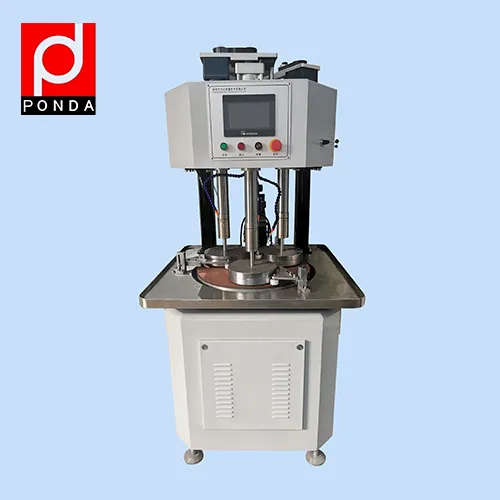

Seals Single Side Lapping and Polishing Machine

Product Description

Why Ponda?
Ponda has profound experience of lapping, polishing and thinning. We heretofore supplied more than 60, 000 lapping process solutions and appliances over the industries of machinery, electronic, aerospace, aviation, automotive, atomic energy, optics; the substances of metal, SiC wafer, ceramics, glass, industrial sapphire, plastics, and any other composites.
Main uses:
The mirror polishing machine is suitable for high-precision single plane grinding and polishing of large workpiece and batch production of small workpiece. Such as: aluminum alloy, light plate stainless steel, tungsten steel, aluminum, alloy and other metal material products
Products Show
Working principle:
1. The polishing equipment is a precision grinding and polishing equipment. The grinding and polishing materials are placed on the grinding disc, which rotates against the clock.
2. The dressing mechanism of the grinding disc adopts the hydraulic suspension guide rail to move back and forth, and the diamond trimming knife trims the grinding surface of the grinding disc precisely to obtain the ideal plane effect.
Special points:
1. The pressure of series mirror polishing machine parts is cylinder pressure, the pressure is adjustable;
2. Series of mirror polishing machine using PLC program control system, touch screen operation panel, grinding disk speed and timing can be directly input on the touch screen.
APPLICATION

Process	Industry by Substance	Industry by Applicability
High Speed Grinding & Thinning	Metal And Alloy Ceramic Oxide Carbide Glass Plastic Nature Stone	Sealing	sealing ring(liquid, oil, gas)
		Semiconductor	substrate(Al2O3, Si, SiC, Ge, Ge-Si, GaN, GaAs, GaAsAl, GaAsP, InSb, ZnO, AlN) used in Wafer, LED., etc
		Plastic	Hard Plastic
		Optics(flat)	optical lens, optical reflector, holographic glass, HUD glass, screen glass
		Gemstone	jade, sapphire, agate, etc.
		Others	gauge block, micrometer gauge, friction plate, metal components, and any other precise hardware.
*NOTE: spiral stripe appears after high speed grinding and thinning. To dispel it, lap or polish are needed.

SPECIFICATION

Standard Specification
Machine Model	FD3803		FD4603		FD6103		FD9104
Plate Diameter	Φ380 mm / 15 inches		Φ460mm / 18 inches		Φ610mm / 24 inches		Φ910mm / 36 inches
Max. Workpiece Diameter (without conditioning ring)	Φ180 mm		Φ220 mm		Φ270 mm		Φ420 mm
Conditioning Ring Diameter	Φ180 mm		Φ220 mm		Φ270 mm		Φ420 mm
Number of Station	3		3		3		4
Plate Rotate Speed	0-140 rpm		0-140 rpm		0-120 rpm		0-90 rpm
Facing & Grooving Speed (Not include in Polishing)	0-120 mm/m		0-120 mm/m		0-120 mm/m		0-120 mm/m
Total Weight	450 kg		780 kg		1000 kg		1600 kg
Total Floor Space	670×940 mm		1030×730 mm		1920×840 mm		2100×1300 mm
*NOTE: the optional kits based on the production requirements, making samples can confirm if they are necessary.

SAMPLE DEMONSTRATION (SINGLE PLATE)
About the Company
Factory front desk
Ponda is a high-tech enterprise specializing in all kinds of high precision grinding equipment, polishing equipment and its
supporting products and consumable materials
Production and assembly shop We have a production workshop and testing equipment, assembly workers and mechanical design engineers
45 people
Patent
Delivery & Packing
Packing Details : Packing, 1 pcs/Wooden box.
FAQs
Q1: Which machine is most applicable for my product?
A: It usually depends on 5 requirements and parameters of your product: flatness, roughness, thickness, dimension, productivity:
1. If better flatness and roughness were required, you might need both lapping and polishing machine.
2. If to thin the product in a big margin, such as 500μm, you might need a thinner machine for extra.
3. If the productivity were excessive, you might need larger machine or to expand production line.
Additionally, we can confirm the production line as we make samples for you.
Q2: Does Ponda charge for making samples?
A: No, it's free to make samples.
Q3: Is Ponda trader or manufacturer?
A: We are manufacturer, certified National High-Tech Enterprise.
Q4: How long does it take machine to deliver?
A: Approximately 15 days to deliver. If the machine are out of stock, we need 15 days more to manufacture.
Q5: Does Ponda provide oversea setup and after-sale service?
A: Yes, we provide oversea service and online tutorial.
Q6: How many type of machine does Ponda manufacture?
A: We have 21 major series of machines, 5 different types run in different principles, more than 15 types of plates, 100 types of slurries.

---
