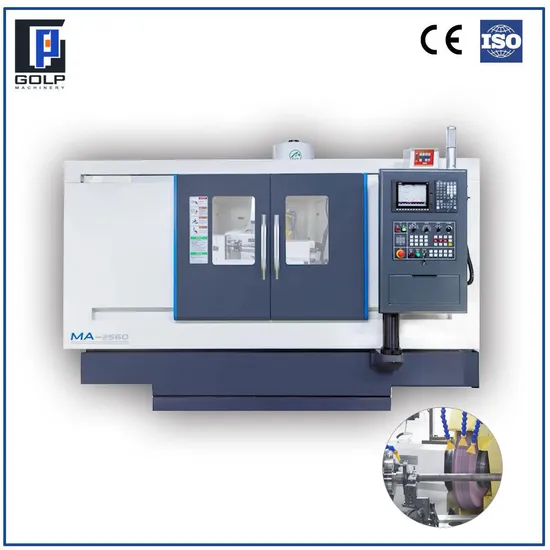

Precision CNC Outer Diameter (OD) External Cylindrical Grinding Machine for Shafts/ Disc Parts

Product Description

Provide a complete solution for cylindrical and end face grinding of shaft and disc parts, which can be equipped with truss or joint robots.
optional :Automatic loading and unloading storage system;
Rich, stable and reliable functional modules;

MA:Angled Feed
MP:Straight Feed

ITEM	MA oblique/MP straight
	MA2530	MP2530	MA2560	MP2560
max processing diameter mm	Ф250		Ф250
max processing length mm	300		600
max loading kg	80		80
max spindle rotate diameter mm	Ф260		Ф260
X/Z axis travel mm	180/300		180/600
X/Z servo motor power kw	1.5/1.5		1.5/1.5
spindle motor power kw	5.5		5.5
max grinding wheel mm	Ф450xФ127x120		Ф450xФ127x120

Functional module
Δ Static spindle: High rigidity front and rear radial hydrostatic bearings, with high rotary accuracy, high rigidity, stable rotation, no vibration and long life. Motor belt drive, infinitely variable speed, constant line speed.
Δ Grinding wheel dressing: Diamond pen or servo driven diamond roller dresser to meet different needs.
Δ Measuring device(optional): End face, outer diameter equal gauge can be selected according to grinding requirements of workpiece.
Δ Workpiece driving device(optional): Automatic tractor, driving ring, clamp, etc. canbe selected according to grinding requirements of workpiece.
Automatic & connect line
CNC cylindrical grinding machine + Truss robot
Automatic production line
Automatic production line refers to the process by which the machines on a production line are linked together to form a production line which can auto-matically control,measure and continous processing including feeding, loading,unloading and product processing.
Layout principle
Flow principle: organic combination of each process, centralized placement of related processes and fluidized layout.Short-distance principle: minimize handling, process can not be crossed, straight running.Balance principle:resources allocation between workstations and speed allocation should be balanced as far as possible.Fixed cycle principle: minimize handling. Princi-ple of economic output: adapt to the situation of small-scale production.make use of space and reduce the placement of ground.Principle of flexibility: sufficient strain on future changes and flexible plan.Error-proof princi-ple: prevent errors from hardware layout and reduce production losses.
WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear shaping machine, gear grinding machine ,gear chamfering machine ,gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q: How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
