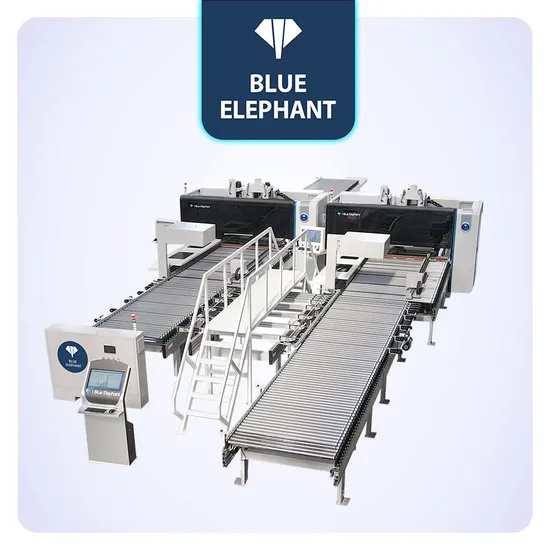

Latest Six-Sided Drilling Double-Machine Connection with Load and Unload

Product Description

latest six-sided drilling double-machine connection with load and unload for price
Description:
Blue Elephant's latest six-sided drilling double-machine connection adopts Blue Elephant's self-innovated mechanical structure and uses two six-sided drilling machines for upper and lower double drilling packages, greatly improving production efficiency. It also has the functions of high-definition scanning, automatic positioning, and intelligent transmission. Compared with a single-head six-sided CNC drilling machine, this six-sided drilling double machine connection uses Blue Elephant's self-developed precision CNC dual drilling kit, which ensures high precision while increasing drilling efficiency by 30%, greatly saving labor and time costs.
Features:
1. Each drill package contains 12 vertical drill bits and 8 horizontal drill bits. Double drill packages can drill holes at the same time. Compared with single drill package, the efficiency is increased by 30%. At the same time, the multiple different drill bits can be switched quickly, which can meet the fast and efficient drilling and milling of all holes and slots.
2. It only needs one worker to operate, load and unload. The operation is simple and fast, saving one labor cost.
3. Adopting C-type double gripper mechanism, it can control board feeding and positioning according to computer drilling program, which is more stable and reliable.
4. The maximum processing length of this machine is 250-2800mm, the maximum processing width is 50-1200mm.
Parameters

Model	ET6D
Working size	1300x2500mm
Spindle type	3.5KW Air Cooling Spindle*2
Number of tools	12 Vertical top drilling+8 horizontal drilling*2 +9 bottom vertical drilling
Control system	Blue Elephant Custom System
Driver system	Absolute servo motor
Transmission	Taiwan helical rack
X axis Travel speed	120m/min
Y axis Travel speed	80m/min
Re-positioning accuracy	±0.03mm
Software	Blue Elephant Custom System
Working voltage	220V /380V/ 50-60HZ
Machine overall size	5832*2727*2367mm

PS:All the working area and specifications can be customized according to your requests.
Detailed Photos
Sample & Application
This machine is mainly used for wood panel hole drilling , This machine combines all the elements needed for a furniture manufacturer to design and machine custom cabinets,wardrobe, custom furniture and support products. It is specialized in making nested based production of cabinets, closet and customized furniture.
Exhibition
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Company Profile
Jinan Blue Elephant CNC Machinery, a professional CNC router and laser cutting machine manufacturer in China, includes ATC CNC routers, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our CNC routers are widely used for advertising, woodworking, mold, stone, and metal industry.

Packaging & Shipping
Packaging Details
1. The innermost layer is the EPE pearl cotton film package.
2. The middle layer is wrapping up with environmental protection material .
3. And the outermost layer is winding up with PE stretch film.
4. They're very environmentally friendly.
5. If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
FAQ:
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions for the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters
2. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, Copper, and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years of factory experience. As only the machine is made by ourselves, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easily, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7 to 10 days: For non-standard machines and customized machines according to clients specific requirements, it will be 15 to 30 days.
