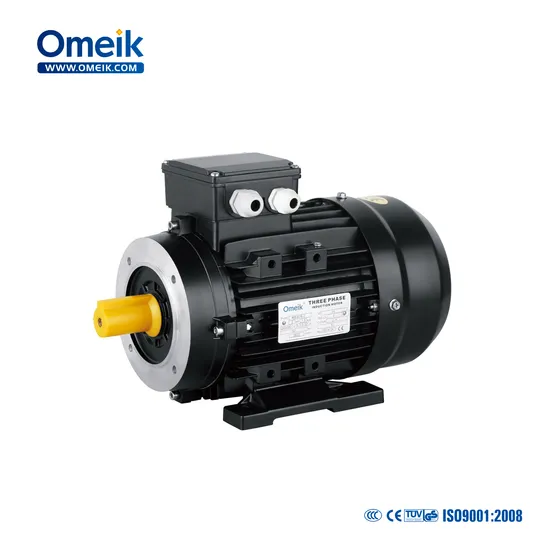

High Quality Low Price Low Noise Three Phase Aluminium Housing Induction Electric AC Motor

Product Description

1. MS series electric motors adopt the latest design and high quality material. MS series motors are conform to the IEC standard in function, appearance, output and other requirements.
2. The efficiency of MS series motors meet EFF2 standard in E. U., and can reach the EFF1 standard if requested.
3. MS series motors have a lot of advantages including high, energy saving, low noise, little vibration, light weight, small volume, reliable operation, up-to-date appearance, convenient operation and maintenance.

Specification as below:

TYPE	Output (kW)	Volt(V)	Current (A)	Speed(r/min)	Eff(%)	Power Factor	Tstart/Tn	Tmax/Tn	Ist/In	Weight(kg)
MS561-2	0.09	220/380	0.57/0.33	2800	62	0.68	2.3	2.4	6	4.6
MS562-2	0.12	220/380	0.67/0.38	2800	67	0.71	2.3	2.4	6	4.8
MS631-2	0.18	220/380	0.91/0.53	2800	69	0.75	2.2	2.4	6	5
MS632-2	0.25	220/380	1.17/1.68	2800	72	0.78	2.2	2.4	6	5.3
MS711-2	0.37	220/380	1.65/0.95	2800	74	0.8	2.2	2.4	6	6.5
MS712-2	0.55	220/380	2.33/1.35	2800	76	0.82	2.2	2.4	6	7
MS801-2	0.75	220/380	3.03/1.75	2800	77	0.85	2.2	2.4	6	9.5
MS802-2	1.1	220/380	4.42/2.55	2800	77	0.85	2.2	2.4	6	11
MS90S-2	1.5	220/380	6.01/3.84	2800	77	0.85	2.2	2.4	6	14.5
MS90L-2	2.2	220/380	8.61/4.98	2800	78	0.86	2.2	2.4	6	17
MS100L-2	3	220/380	11.1/6.4	2870	82	0.87	2.2	2.3	7	24.5
MS112M-2	4	380/660	8.2/4.7	2890	86	0.87	2.2	2.3	7	30
MS132S1-2	5.5	380/660	11/6.3	2900	86	0.88	2	2.2	7	42
MS132S2-2	7.5	380/660	15/8.6	2900	86	0.88	2	2.2	7	50
MS561-4	0.06	220/380	0.49/0.28	1400	56	0.58	2.3	2.4	6	4.6
MS562-4	0.09	220/380	0.67/0.39	1400	58	0.61	2.3	2.4	6	4.8
MS631-4	0.12	220/380	0.84/0.48	1400	60	0.63	2.2	2.4	6	4.8
MS632-4	0.18	220/380	1.12/0.65	1400	64	0.66	2.2	2.4	6	5
MS711-4	0.25	220/380	1.44/0.83	1400	67	0.68	2.2	2.4	6	6.3
MS712-4	0.37	220/380	1.94/1.12	1400	70	0.72	2.2	2.4	6	7
MS801-4	0.55	220/380	2.69/1.56	1400	74	0.73	2.2	2.4	6	9.5
MS802-4	0.75	220/380	3.48/2.01	1400	76	0.75	2.2	2.4	6	11
MS90S-4	1.1	220/380	4.74/2.75	1400	78	0.78	2.2	2.4	6	14.5
MS90L-4	1.5	220/380	6.31/3.65	1400	79	0.79	2.2	2.4	6	16
MS100L1-4	2.2	220/380	8.6/5.0	1430	81	0.82	2.2	2.3	7	23
MS100L2-4	3	220/380	11.7/6.8	1430	83	0.81	2.2	2.3	7	27
MS112M-4	4	380/660	8.8/5.1	1440	85	0.82	2.2	2.3	7	33.5
MS132S-4	5.5	380/660	12/6.9	1440	86	0.84	2.2	2.2	7	49.5
MS132M-4	7.5	380/660	15/8.6	1440	87	0.85	2.2	2.2	7	57.5
MS90S-6	0.75	220/380	4.0/2.3	910	73	0.7	2.2	2.2	5.5	14.5
MS90L-6	1.1	220/380	5.5/3.2	910	74	0.72	2.2	2.2	5.5	17
MS100L-6	1.5	220/380	6.9/4.0	940	78	0.74	2.2	2.2	6	22.5
MS112M-6	2.2	220/380	9.7/5.6	940	81	0.74	2.2	2.2	6	29
MS132S-6	3	220/380	12.4/7.2	960	83	0.76	2	2	6.5	48
MS132M1-6	4	380/660	9.4/5.4	960	84	0.77	2	2	6.5	49
MS132M2-6	5.5	380/660	13/7.5	960	85	0.78	2	2	6.5	57.5

SPARE PARTS:
PACKING WAYS
FAQ Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply

---
