Product Details
Product Description
Product Description

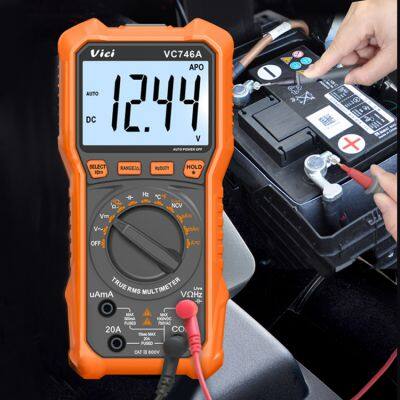

Vicimeter VC746A Digital Multimeter
VC746A 5999 Counts Digital Multimeter
Features:
1. New shell panel, streamlined design, comfortable handle;
2. Large HD LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance; Full function protection;
4. Auto power off when there is no measurement in 15 minutes;
5. Unit symbol display, easy to read; Lighting function, backlight display;
6. True RMS , NCV, Live wire, Relative value measurements, frequency/duty cycle and data hold function.
Technical Data:
Basic function
| Range
| Basic Accuracy
|
DCV
| 600mV/ 6V/ 60V/ 600V/1000V
| ±(0.5%+5)
|
ACV
| 6V/ 60V/ 600V/ 750V
| ±(0.8%+10)
|
DCA
| 600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 20A
| ±(1.0%+5)
|
ACA
| 600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 20A
| ±(1.5%+10)
|
Resistance
| 600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 60MΩ
| ±(0.8%+2)
|
Capacitance
| 60nF/ 600nF/ 6uF/ 60uF/ 600uF/ 6mF/ 60mF
| ±(2.5%+5)
|
Frequency
| 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/ 10MHz
| ±(0.5%+4)
|
Temperature
| -40℃～1000℃ | -40℉～1832℉
| ±(1.0%+5)
|
Specific Function:
Model
| VC746A
|
Max. display
| 6000
|
True RMS
| √
|
NCV
| √
|
Live test
| √
|
High voltage indication
| √
|
Data hold
| √
|
Function protection
| √
|
Torch function
| √
|
Backlight display
| √
|
Duty cycle
| 1%~99%
|
Diode test
| 0V~3.3V, it displays “OL” if over 3.3V
|
Continuity alarm
| Less than 50Ω, it displays “OL” if over 610Ω
|
Low battery indicator
| Approx. less than 2.4 V
|
Auto power off
| About 15 minutes
|
Input impedance
| 10MΩ
|
Sampling rate
| 3 times/s
|
AC frequency response
| 40Hz-2kHz
|
Operation method
| Manual or Auto range
|
>>
