Product Description

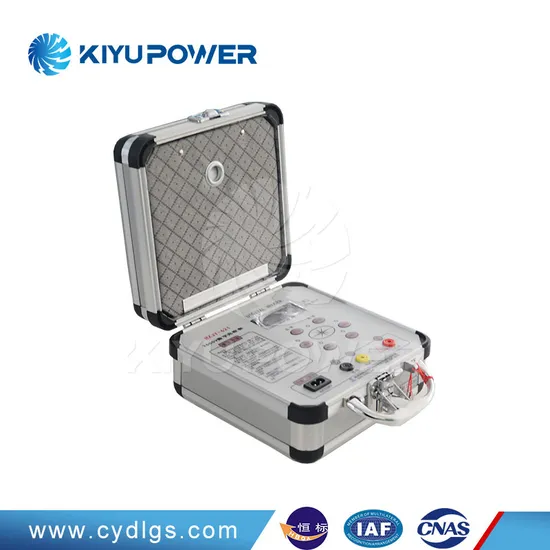

AC/DC Available Digital Insulation Resistance Tester
HZJY-621 Digital mega ohm meter is composed of medium and large scale integrated circuits. Large output power, high short circuit current, many output voltage level(there are 4 voltage levels to choose).
Kind Note: Insulation resistance testing must be working under no living circuits.
Product Features:
1.Large output power, strong load capacity and anti-interference ability. Use proportion method to measure the low resistance, so the voltage drop does not affect the test accuracy.
2.Battery powered, automatically convert the measurement range.
3.Output short circuit current can be measured directly, no need to estimate on load measurement.
Product Parameters:
| Using Condition | Environment Temperature | 0ºC~45ºC |
| Relative Humidity | ≤85% RH |
Output Voltage Level Measurement Range Resolution Error | Output Voltage Level | 500V, 1000V, 2000V, 2500V |
| Measurement Range | 0~19990MΩ |
| Resolution | 0.01MΩ, 0.1MΩ, 1.0MΩ, 10.0MΩ |
| Relative Error | 0~2000MΩ≤±5%±2d |
| 2000MΩ~19990MΩ≤10%±2d |
