Used Tire Reclaim Rubber Machine

Product Description

Fully Automatic Used Tire Reclaim Rubber Machine / Used Tire Recycling Machine / Waste Tyre Recycling Plant

No	Name	Model	Number
1	Ring cutter	QQJ-20	1
2	Strip cutter	QTJ-380	1
3	Block cutter	QKJ-45	1
4	Loop machine	YQJ-285	1
5	Conveyor equipment	BSJ-1100, XSJ-600	2

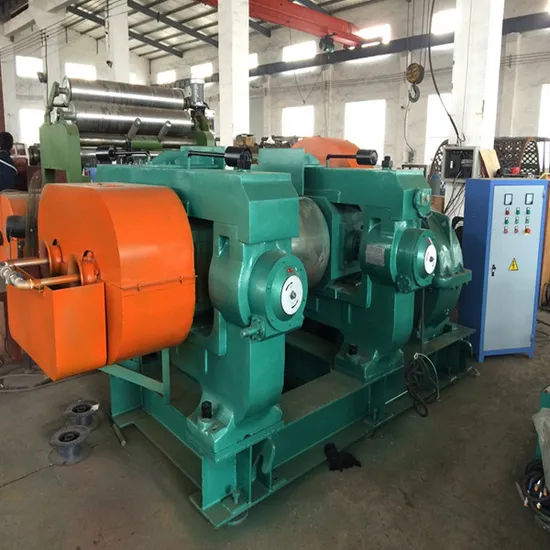

*6	Rubber crusher	XKP400/XKP450/XKP560	1
7	Magnet separator	BCX-2, XCX-1	2
8	vibrating screen	BS-8, XS-4	2
*9	Fiber separator	XFJ-1100	1
10	Rubber grinder	XMF-270/330/420	1
*6: there is 3 types of rubber crusher, you can choice the suitable one ,it is depend on the output! #9 : you not need Granulator Grinder if your final rubber powder bigger than 30 mesh. but we need it if the powder less than 30 mesh and the number of this machine depend on the output!

1. GENERAL:
Waste tire recycling is including the mainly machine and accessorial equipment, it is used for recycling used-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber.
2. Process flow of used tyre recycling plant:
Tire ring cutter steel wire extractor tire shredder rubber coarse crusher magnetic separator vibrating screen1 fine rubber crusher vibrating screen2 cyclone classifier storage bin rubber grinder vibrating screen3package.
The whole line has the following features:
1), iron/steel removing ratio>99.5%, fiber removing ratio>98%
2), compact structure ensure running safety, easy maintenance;
3), low energy consumption;
4), adopt automatic control system for whole line, reduce labor cost;
5), no sewage and waste gas discharge, environment protection.
6), available capacity range of our tire recycling lines at present: 400~3000kg/h
7), available finial rubber powder size: 30~120mesh.
8), adopts SIEMENS and Chinese famous brand electrical elements.
3. Analysis for output:
1). XKP400 rubber crusher:
Output: 200kg/hour for about 30 mesh granule.
2). XKP450 rubber crusher:
Output: 350kg/hour for about 30 mesh granule.
3). XKP560 rubber crusher:
Output: 500kg/hour for about 30 mesh granule.

---
