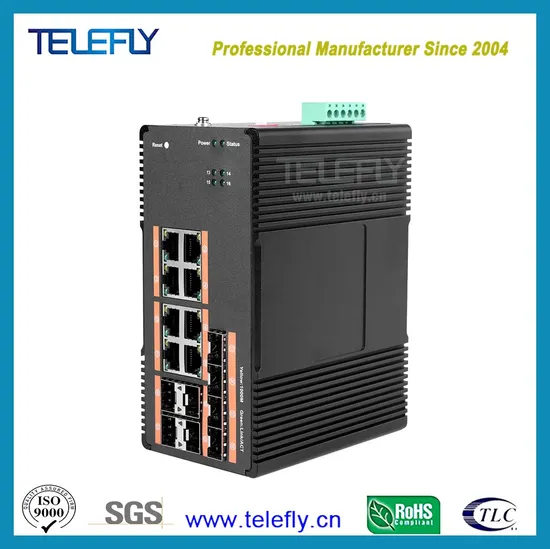

Factory Price 8 Ports RJ45 8 Ports SFP Poe Network Managed Poe Switch

US$221.40-250.10 1 Piece (MOQ)

Basic Info.

Model NO.
TL-V8088GM
Transmission Rate
10/100/1000Mbps
Ports
≦8
Input Voltage
12~54VDC
Operating Environment
Industrial -40~85 Centigrade
Master Chip
Vts
Poe
Optional Poe;Full 802.3af/at Compliant.
IP Level
IP40
Management Features
Vlan Mirror Erps(G.8032) Igmp Snmp Qos Acl
Transport Package
Individual Package 10PCS/CTN
Specification
Industrial Rail and Rack-Mount
Trademark
TELEFLY or OEM
Origin
Shenzhen
HS Code
85176219
Production Capacity
800PCS Per Week

Product Description

Factory price 8 Ports RJ45 8 ports SFP Poe Network Managed Switch
TL-V8000 Series Industrial Switches
The V8000 series switches are the next-generation of green energy-saving managed Gigabit Ethernet access industrial switches introduced by TELEFLY, and come with the ERPS feature, helping customers build high-availability, secure and reliable industrial access networks. It can be widely used in industrial scenes such as smart city, smart transportation, smart pipe gallery, smart industry and other Ethernet access scenes.
Product Parameters Product Specifications
Parameters V8000 subseries
Power Dual power redundancy
MAC address 8K
buffer(bits) 4M
Dimensions(W x D x H, mm) 155mm X115mm X55 mm
Power Protect Anti-reverse connection, over-voltage and over-current protection
Input voltage DC:12V~54V (POE)48-54v
Power consumption < 25W
Operating environment -40ºC~+85ºC
5% to 95% (non-condensing)
Heat dissipation Fanless,natural heat dissipation
DIP switch One Key Ring
Installation DIN/Bracket
IP level IP40
Surge IEC 61000-4-5 Level 4
EFT IEC 61000-4-4 Level 4
ESD IEC 61000-4-2 Level 4
Service Features
Subsystem Item V8000 subseries
Layer 2 Features Link Aggregation Static aggregation;
Dynamic aggregation, LACP
Port Features IEEE 802.3x flow control;
Interface counters
Mac-address table IEEE 802.1q;
Static mac-address;
Dynamic mac-address;
Filtering mac-address;
MAC address capacity:8K
VLAN 4094 VLANs;
Port-based VLAN;
Access port,trunk port,hybrid port
GVRP Support
QINQ VLAN-based QinQ;
1:1 VLAN Mapping
LLDP LLDP;
LLDP-MED
Mirror Port-based mirror;
Ingress vlan-based mirror;
Ingress flow-based mirror
Spanning Tree STP;
RSTP;
MSTP
Loop protect Private loop protection protocol
ERPS(G.8032) Single ring
Multiple rings
Multiple instances
Protocol VLAN MAC-based VLAN;
Protocol-based VLAN;
IP subnet-based VLAN
Voice VLAN Static entry;
LLDP-MED based
Private VLAN Support
Port Isolate Support
IGMP Snooping IGMP V1 Snooping;
IGMP V2 Snooping;
IGMP V3 Snooping;
Source Port Check;
IGMP Fast Leave;
IGMP Filter;
IGMP Proxy
MLD Snooping MLD V1 Snooping;
MLD V2 Snooping;
Souce Port Check;
MLD Fast Leave;
MLD Filter;
MLD Proxy
MVR Static mode;
Dynamic mode;
Fast Leave
Security Features ACL L2 & L3 & L4 fields match;
Log, redirection, mirror and rate-limit action
QOS QoS Class, Remarking;
SP, WRR queue scheduling;
Ingress port-based rate-limit;
Ingress priority-based rate-limit;
Egress port-based rate-limit;
Egress queue-based rate-limit;
Policy-based QoS;
8 queues per port;
Storm control
Dot1X Port access control;
User access control;
Mac-address aceess control;
Radius Server
TACACS+ Server
IP Source Guard Dynamic entry(from DHCP Snooping);
Static entry
ARP Inspection Dynamic entry(from DHCP Snooping);
Static entry
Port Security Support
Access Management Support
Management Features User management Password protection
SNMP SNMPV1
SNMPV2C;
SNMPV3
RMON Statistics;
History;
Alarm;
Event
Web management Web management;
HTTP 1.1;
HTTPS
Firmware Upgrade Support
Syslog Support
IPV4/IPV6 IPV4;
IPV6
POE IEEE802.3AF;
IEEE802.3AT;
Power Management Mode: class, energy-saving, static
Diagnosis Ping(ipv4);
Ping(ipv6);
Traceroute(ipv4);
Traceroute(ipv6)
Application Features NTP NTP Client
DHCP Snooping DHCP snooping table;
Trust port
DHCP Client DHCPv4 Client;
DHCPv6 Client
Telnet Telnet Server
SSH SSH Server
TFTP TFTP Client
Related product links
TL-V808GM Downlink:8 * 10/100/1000Base-T Ethernet Ports
Uplink: Shared with downlink ports
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:11.9Mpps
Switch capacity:55Gbps
TL-V8041GM Downlink:4 * 10/100/1000Base-T Ethernet Ports
Uplink:1 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:8.93Mpps
Switch capacity:55Gbps
TL-V8081GM Downlink:8 * 10/100/1000Base-T Ethernet Ports
Uplink:1 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:13.4Mpps
Switch capacity:55Gbps
TL-V8042GM Downlink:4 * 10/100/1000Base-T Ethernet Ports
Uplink:2 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:8.93Mpps
Switch capacity:55Gbps
TL-V8062GM Downlink:6 * 10/100/1000Base-T Ethernet Ports
Uplink:2 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:11.9Mpps
Switch capacity:55Gbps
TL-V8082GM Downlink:8 * 10/100/1000Base-T Ethernet Ports
Uplink:2 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:14.9Mpps
Switch capacity:55Gbps
TL-V8122GM Downlink:12 * 10/100/1000Base-T Ethernet Ports
Uplink:2 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:20.8Mpps
Switch capacity:55Gbps
TL-V8044GM Downlink:4 * 10/100/1000Base-T Ethernet Ports
Uplink:4 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:11.9Mpps
Switch capacity:55Gbps
TL-V8064GM Downlink:6 * 10/100/1000Base-T Ethernet Ports
Uplink:4 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:14.9Mpps
Switch capacity:55Gbps
TL-V8084GM Downlink:8 * 10/100/1000Base-T Ethernet Ports
Uplink:4 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:17.9Mpps
Switch capacity:55Gbps
TL-V8104GM Downlink:10 * 10/100/1000Base-T Ethernet Ports
Uplink:4 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:20.8Mpps
Switch capacity:55Gbps
TL-V8124GM Downlink:12 * 10/100/1000Base-T Ethernet Ports
Uplink:4 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:23.8Mpps
Switch capacity:55Gbps
TL-V8042PGM Downlink:4 * 10/100/1000Base-T Ethernet Ports,Supporting POE
Uplink:2 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:8.93Mpps
Switch capacity:55Gbps
TL-V8044PGM Downlink:4 * 10/100/1000Base-T Ethernet Ports,Supporting POE
Uplink:4 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:11.9Mpps
Switch capacity:55Gbps
TL-V8082PGM Downlink:8 * 10/100/1000Base-T Ethernet Ports,Supporting POE
Uplink:2 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:14.9Mpps
Switch capacity:55Gbps
TL-V8084PGM Downlink:8 * 10/100/1000Base-T Ethernet Ports,Supporting POE
Uplink:4 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:17.9Mpps
Switch capacity:55Gbps
TL-V8086PGM Downlink:8 * 10/100/1000Base-T Ethernet Ports,Supporting POE
Uplink:6 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:20.8Mpps
Switch capacity:55Gbps
TL-V8042PDGM Downlink:4 * 10/100/1000Base-T Ethernet Ports,Supporting POE
Uplink:2 * 2.5GBASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:13.4Mpps
Switch capacity:55Gbps
TL-V8082PDGM Downlink:8 * 10/100/1000Base-T Ethernet Ports,Supporting POE
Uplink:2 * 2.5GBASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:19.3Mpps
Switch capacity:55Gbps
TL-V8084PGM-2DS Downlink:8 * 10/100/1000Base-T Ethernet Ports,Supporting POE
Uplink:4 * 1000BASE-X SFP and 2 * 2.5GBASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:25.3Mpps
Switch capacity:55Gbps
TL-V8126GM Downlink:12 * 10/100/1000Base-T Ethernet Ports
Uplink:6 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:26.8Mpps
Switch capacity:55Gbps
TL-V8048GM Downlink:4 * 10/100/1000Base-T Ethernet Ports
Uplink:8 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:17.9Mpps
Switch capacity:55Gbps
TL-V8088GM Downlink:8 * 10/100/1000Base-T Ethernet Ports
Uplink:8 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:23.8Mpps
Switch capacity:55Gbps
TL-V8128GM Downlink:12 * 10/100/1000Base-T Ethernet Ports
Uplink:8 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:29.8Mpps
Switch capacity:55Gbps
TL-V80612GM Downlink:6 * 10/100/1000Base-T Ethernet Ports
Uplink:12 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:26.8Mpps
Switch capacity:55Gbps
TL-V80812GM Downlink:8 * 10/100/1000Base-T Ethernet Ports
Uplink:12 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:29.8Mpps
Switch capacity:55Gbps
TL-V81212GM Downlink:12 * 10/100/1000Base-T Ethernet Ports
Uplink:12 * 1000BASE-X SFP
Wide voltage DC power supply, anti-reverse connection
Forwarding performance:35.7Mpps
Switch capacity:55Gbps
Company Profile
Our Advantages Company Profile
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive Ethernet switch ,SFP transceiver,media converter ,patch cable, Fiber Optic Splitter and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
Why you choose TELEFLY be one of your partner?
1.Customer get satisfied quality and service with competitive price and punctual delivery.
2.OEM service with 13-year experiences, free samples are available.
3.Prompt answer for any question and inquiry in the shortest time.
4.Factory directly,reduce your cost and save time.
1.Customer get satisfied quality and service with competitive price and punctual delivery.
2.OEM service with 13-year experiences, free samples are available.
3.Prompt answer for any question and inquiry in the shortest time.
4.Factory directly,reduce your cost and save time.
FAQ Q1 . What your MOQ?
A1 .1 pcs is ok,whatever how many you need,and we will also give you the best service.

Q2.What certification did you get?
A2 : Our product strictly operate the ISO9001:2008 quality control system and we passed the CE,FCC,ROHS and SGS test,you can trust us.

Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.

Q4.What your common delivery way?
A4:By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.

Q5.Tell me some detail about warrant time.
A5:We give you the promise if any question during 1 year and not cause by human factors,we will fix it.
>> Automatic 3-in-1 Rotary Juice Filling and Packaging Machine/Production Line Price
>> R1G310*70 DC Energy-Saving Low Noise Outdoor Backward Curved Centrifugal Fans
>> Chainsaw Spare Parts Piston for Husqvarna 372XP 365X Chain Saw
>> Custom Perspex Desk Cover Sneeze Guard Protective Screen Display Stand
>> Hipuller Factory 1t Electric Chain Hoist for Overhead Bridge Crane
>> Indoor Outdoor Advertising Rental Digital Flexible Mobile Poster Window TV LED Panel Display Screen with P2.5 P3.91 P5 Price
>> Taijia pipe insertion ultrasonic flow meter ultrasonic portable Field Irrigation and Water Conservancy Flowmeter
>> Small Plough Harvester Potato Sweet Potato Carrot Peanut Harvesting Machine
>> Factory Made Silicone Braided Tube for Machine
>> Beach Sunset Mouse Pad,Cute Mouse pad,Custom Small Mouse Pads with Designs,Portable Office Non-Slip Rubber Base Wireless Mouse Pad for Laptop
>> China Wholesale Digital Watches Men Luxury Brand Automatic
>> 5K0953569BF Original For Caddy Passat 2016-2022 Sharan Skoda Yeti 2014-2018 OEM 5K0 953 569 BF High Quality
>> Make Your Own Logo Natural Green Tea Extract Smoothing Brighten Skin Tone Facial Mask
>> Taijia Grid Scan Concrete Reinforcement Detector,rebar scanner,rebar corrosion testing equipment metal detectors prices
>> Great Price R22 12000BTU 24000BTU Aircondition Wall Split Air Condition
>> Hbsag Hepatitis B Surface Antigen Rapid Test Kit
>> Original New Common Rail Diesel Fuel Injector 23670-09070 for Toyota Hilux 2kd-Ftv Euro4 1kd-Ftv Engine Nozzle
>> Slab Precision Cutter
>> PVB lamination glass experiment SCR for power regulation by heating autoclave of roller press
>> TCA Integrated Animal Husbandry Equipment Fully Automated H Type Poultry Broiler Chicken Cages with Feed Processing Machines
