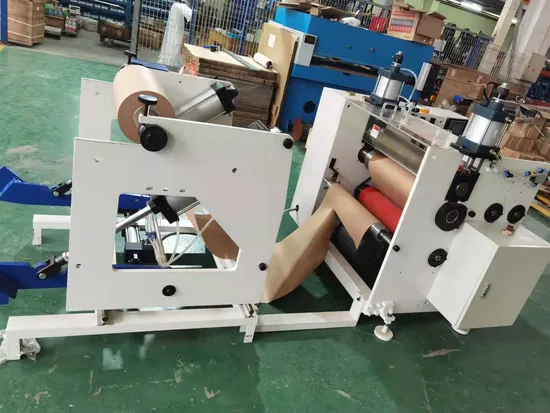

Honeycomb Die Cutting Machine with Frequency Conversion Speed Regulation

Product Description

PRODUCT DESCRIPTION

Product name	Honeycomb Die Cut Paper Machine
Power	4KW-380V
External pressure	6-8kg/c m2
Winding mandrel	1, 1.5 , 2
Winding width	500mm
Weight	Approx. 1000kg
Dimension	L*W*H(2900*1500*1400)
Motor	4KW
Frequency conversion motor	4KW

Performance and characteristics
1)This machine is used for rewinding white paper,yellow paper, kraft paper in roll into honeycomb paper.Paper making and rewinding could be completed at the same time.It is light in weight,small size, low noise.Also with high efficiency and energy saving.Fast dynamic response and stable running speed are the significant advantages.
2)This machine adopts frequency conversion speed regulation, fully integrated circuit control. Complete functions, good repeatability, stable speed. Reliable work. Absolutely correct movement.
3)Winding and unwinding tension is automatically controlled.Two sections of electronic meter to ensure the accuracy.
Installation notes
1)The operator should read the instruction carefully before operation.
2) Please check the stationarity for the four legs of machine.whether the body has grounding wire or not.
3) The machine should be installed in a dry and ventilated place ,The surrounding objects are at least 2m away from the machine.
4) Connect the safe grounding end of the machine with the grounding protection wire reliably, and the joints must be tightened.
5) The machine must be operated by a professional person.
6) Connect the wire between the machine and the unwinding shelf in accordance with the color of it,install the deviation detection device.
Panel function diagram
From left to right, from top to bottom
1,Length counter 2,Counting reset 3,Speed display 4,Speed regulation
5,Winding tension Stop/Mover 6,Start 7,Stop/Mover 8,Unwinding tension
9,Power switch 10,Correction controller 11,Emergency stop

---
