Product Description
Product Description

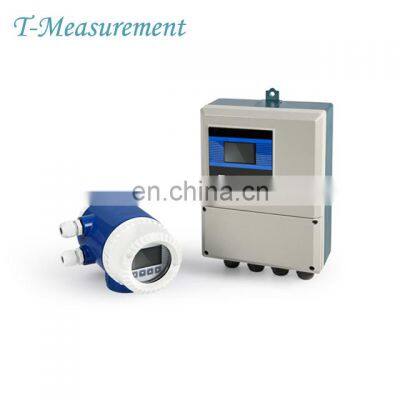

Product DescriptionSuitable to Size of the Sensor (mm）:.1，2，3、6、8，10、15、20、25、32、40、50、65、80、100、125、150、200、250、300、350、400、450、500、600、650，700、800、900、1000、1100，1200、1300，1400、1500，1600、1700，1800、2000、2200、2400、2600、2800、3000Transmitter outline dimension and type：According to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different.SpecificationPlace of OriginChinaBrand NameTmeasurementModel NumberFT8210HTypeMagnetic Flow Meter ConverterItemElectromagnetic Flow ConverterExcitation current125mA,160mA,250mAPipe size1~3000mmCommunicationRS485 (standard),HART (option),MODBUS interfaceQuick ResponseResponse time of 0.3 secondsAmbient temperature-20~+65℃Relative humidity5%~90%LCD DisplayEnglish displayPower Supply85VAC~265VAC;110VAC~420VAC; 24VDCVelocity Range0.01 - 15 m/sDetailRequirement For Sensor And Excitation (AC and DC power supply type)Excitation current can be set to 125mA、160mA、250mA 250mA excitation current is suitable to the resistance of two coil: 35~ 65Ω; 125mA excitation current is suitable to the resistance of two coil: 65 ~ 120Ωexcitation frequency：25HZ；12.5HZ,6.25HZ,3.125HZTransmitter outline dimension and typeAccording to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different.Related productsCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.About UsTrade Terms1. 18 Month's Warranty.2. MOQ:1 set.3.Ready to ship out within bysea,TNT,DHL,FedEX,as soon as we receive payment.4. We accept T/T,Western Union,PayPal & Secure Payment.Contact UsDALIAN TAIJIA TECHNOLOGY CO.,LTDAddress:NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+8618842866177E-mail：commercial(at)
>>
