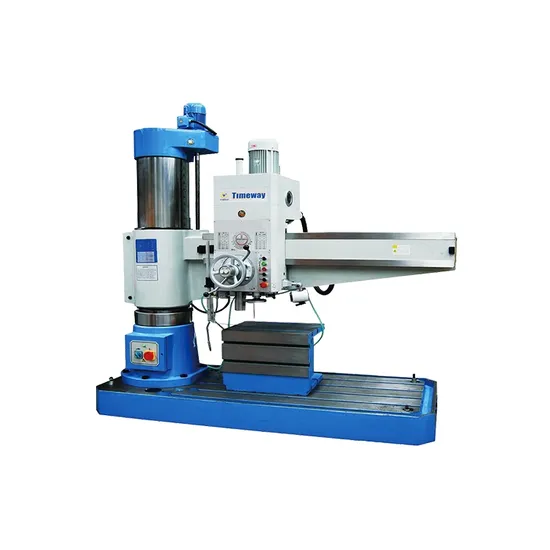

CE Standard Radial Drilling Machine Rd-825 Manual Type Drilling Machine

Product Description

Radial Drilling Machine

Product Description
- Spindle speed with hydraulic pre-selection function - Spindle box, column, arm are clamped by hydraulic system - Clearly arranged control elements - Clamping of drill head directly on handwheel - Speed / feed adjustment situated on underside of drill head - Spindle meet manual rapid feed and micro feed - Cooling system & work lamp comes standard Product Parameters

Specification	Unit	RD825
Max. drilling capacity	mm	80
Distance from spindle axis to column	mm	500-2500
Distance from spindle nose to base	mm	550-2000
Diameter of column	mm	550
Spindle box horizontal movement distance	mm	2000
Radial arm lifting distance	mm	1000
Radial arm lifting speed	m/min	1
Spindle taper	-	MT6
Spindle travel	mm	450
Depth of hole per turn of dial	mm	150
Spindle speed range	rpm	16-1250
Spindle speed step	steps	16
Spindle feed speed	mm/r	0.04-3.2
Spindle feed speed step	-	16
Rotary angle of rocker in horizontal plane	°	±180°
Table size	mm	1000x800x560
Base-table size	mm	3530x1400x300
Main motor power	kw	7.5
Lifting motor power	kw	3
Hydraulic clamping motor power	kw	0.75
Cooling pump motor power	kw	0.09
Machine weight	kg	10000
Overall dimensions (LxWxH)	mm	3730x1400x3790

Detailed Photos

Accessories

Standard accessories:	Optional accessories
Box table, Drill chuck arbor, Morse taper drill sleeve, LED working lamp, Coolant system, Lifting motor, Hydraulic motor, Spindle protective cover, Tools & tool-box, Operation manual.	Quick change collet, Machine Vise, Keyless drill chuck.

Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience;3 . Exported more than 60 countries;4 . CE, ISO Certificates;5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);6 . 12 months quality warranty;7 . Oversea engineers available for problem resolving;Q: Do you have QC or any safety standards for your machinery?A: yes, we have established a highly strict quality control department to guanrantee good quality.Q: What's the MOQ?A: 1 set (Only some low cost machines will be more than 1 set )Q: What about the payment terms?A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;(2) Irrevocable LC at sight;(3) Western Union, MoneyGram, etc.Q: How about the warranty?A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
