Hot Selling in Europe High Precision Lathe DN4025 Drilling Machine

Product Description

Product Description

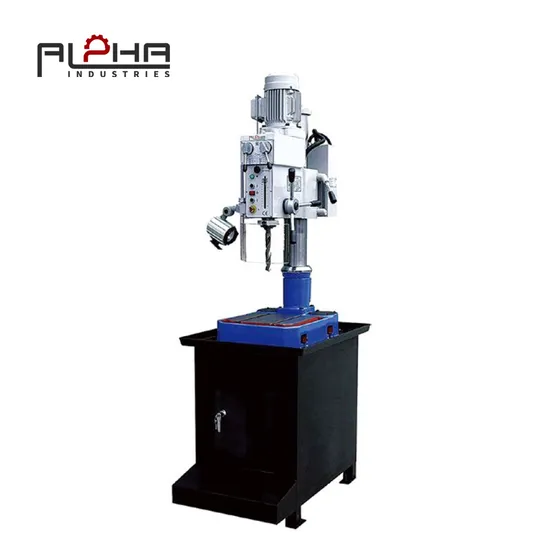

DN4025 Bench Drilling Machine High Precision
Product Parameters

Model NO.	DN4025	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	700x460x1425mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Technical Parameters
Model No.	Unit	DN4025
Max.drilling diameter (steel)	mm	25
Max.tapping diameter (steel)	mm	M18
Distance between spindle center line to	mm	240
the center line of colunm
Max. distance between spindle end to the	mm	650
worktable surface of the base
Max. stroke of the spindle	mm	110
Spindle taper		MT.3
Number of speed steps of the spindle	step	6
Working area of the worktable of the base (L x W)	mm	335x340
Numbers and width of the T slots of base	mm	2-T14
Diameter of colunm	mm	Φ110
Power and speed of the main motor	kw,rpm	0.75,1400
Machine dimension (L x W x H)	mm	700x460x1425
Net weight of the machine (Net weight)	kg

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
