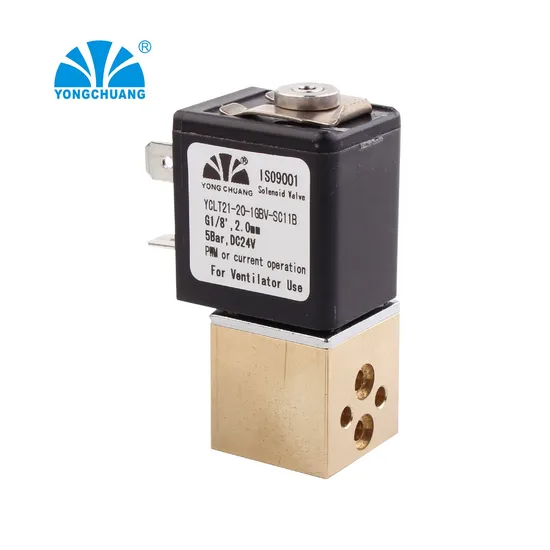

Yongchuang Brass Medical Miniature Proportional Solenoid Valve 24V for Ventilator Use

US$37.00 1 Piece (MOQ)

Basic Info.

Model NO.
YCLT21
Actuator
Shutoff, Direct Acting
Connection Form
Flange
Type
Direct Acting
Material
Brass
Pressure
Max 1.2MPa
Valve Structure
Direct Action Diaphragm Structure
Power Supply
DC Solenoid Valve
Usage
Low Pressure for Ventilator, Ventilator
Standard
GB
Application
Low Pressure for Ventilator, Ventilator
Transport Package
26.5X20X43.5 Cm
Specification
CTN size: 21*31*25cm
Trademark
YONGCHUANG
Origin
China
HS Code
8481804090
Production Capacity
50000/Month

Packaging & Delivery

Package Size
31.00cm * 25.00cm * 21.00cm
Package Gross Weight
0.700kg

Product Description

Characteristic Food class,direct acting structure proportional solenoid valve for ventilator intensively use
Medium Air
Temperature Viton: -30°C to 150 °C
Pressure 0.1-1.2Mpa
Port size Flange
Port thread G,NPT
Orifice 0.8mm,1.0mm,1.2mm,1.6mm
Voltage DC-24V/12v
Tolerance ±10%
Coil SB81B,5W(DC),IP65,100%ED
Material Body-brass Seal- VITON
Amature tube-stainless steel 304
Plunger-stainless steel430F
Stop-stainless steel 430F
Springs-SS304
Shading rings- stainless steel 304


Company Profile

Installation Instructions
Certifications
Product Description
Name: EMILY YAN

Thanks for your inquire!
You can according the below table to select type for yourself
