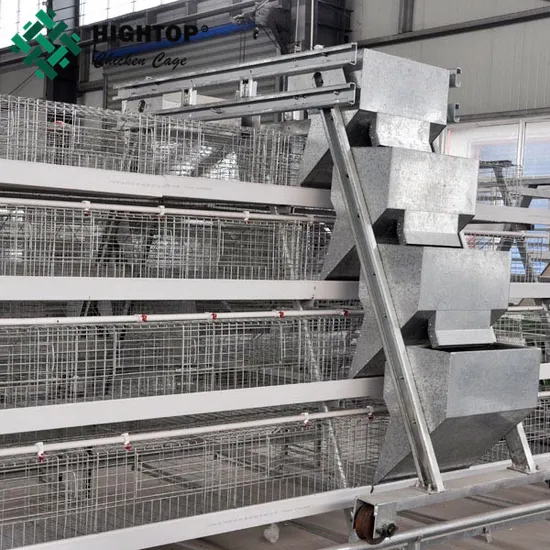

Poultry Farm Ladder Type Automatic Feeding Machine for Poultry Cage

Product Description

Poultry Farm ladder type automatic feeding machine for poultry cage

Automatic feeding machine
Hopper material	1mm thick galvanized sheet
Running speed	70 meters chicken house 5-8minutes
Running distance	Hundreds ofmeters
Hopper capacity	100kg a bucket
Room height	Best in 3.5-4 meters of above
Other	Need to configure the ground screw conveyor to carry feed ,diameter of ground screw conveyor is 140mm, capacity is more than a ton
	perhour

Ladder poultry feeding machine has following features
1. Safe, convenient, and energy saving, they push directly to the chickens with no noise at all.
2. It takes just 40 minutes to complete feeding 10,000 chickens.
3. One machine can take over the work of a dozen people, in this way reducing labor costs, improving the level of breeding
and therefore breeding benefits.
4. It has an automatic feeding function that turns forwards and backwards as the machine moves freely through the chicken house.
5. The machine transports and dispenses powder feed from ground level via a chute. The height of the machine is adjustable
and can operate so that it discharges on both sides, left and right.
6.The way the machine has been factory-set for feeding will result in minimal to a moderate degree of charging required. 7.The use of this machine results in less waste of feed because it loads evenly, and the SAP can be adjusted according
to the charging speed chosen for the machine.
Repair and maintenance
1. When the feeder is running it is best not to put anything above it as this could easily put stress on the motor and
cause it to burn out.
2. Periodically check whether the belt is in good condition, and see whether there is any part that has come loose.
The feeder relies on the belt to transport material (feed), and only if the belt is normal and provides full play will
the machine perform to its maximum.
3. Because the feeder is between the various parts of the gear and chain control connections, you have to check
the gear and the chain to ensure there is sufficient lubrication. If there is a lack of lubrication the equipment won't
work properly and this could damage the machine.
4. Feed production can produce a lot of dust that can result in the accumulation of a lot of dust in the feed machine
control system. This can make the internal circuit short-circuit and result in damaged electrical circuits and other
components. For this reason, every once in a while it is advisable to clean up the dirt in the machine's control box.
5. The feeding machine utilizes various motors and because the motor rotation speed is high it is necessary to use
a reduction motor to slow down at the transmit power point. When using for only small amounts, it is important to
check the motor and gear motor to see if there is anything abnormal in the operation of the machine.
6. Maintenance is a vital part of any operation, and so you must be aware of this especially in terms of the reducer
gear, gear oil and so on.

Q:How many chickens can the cage hold? How many layers?

A:90,96,120 chickens in 3 layers,and 120,128,160 chickens in 4 layers.200 chickens in 5 layers

Q:which one is suitable to my chickens farm?

A:Once you want to start your chicken farm,you can tell us your chicken coop size,We will provide free chicken farm layout design,We have a team to do research the poultry industry for 15 years,they will help you to start a modern and scientific farm.

Q:what is the MOQ of chicken cage?How many sets can fit in one container?

A:MQQ is 10 sets,one 20 ft container can fit in 120-150 sets chicken cage,One 40 ft container can be 280-350 sets chicken cage.

Q:How many years it can use?

A:15-25years(based on different material)

Q:How to install the cage?

A:We provide installation service in two ways!

1.We provide manual book or DVD to guide you that how to install the cage

2.Send our engineer to your farm!

Q:How is your payment term?

A:Generally,our payment term is T/T 30% in advance and the balance 70% against the copy of B/L.Other payment term we can also discuss.

Q:How is your delivery time?

A:we always prepare enough stock material for your urgent requirement,the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

---
