940 Model Flexo CTP Platesetter

US$50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DB-FD
Machine Type
Flexo CTP
Size
940
Resolution
4800dpi
Application
Label, Trademark,Packageing
Loading
Manual
Transport Package
Wooden Case
Specification
5080
Trademark
DB
Origin
China
Production Capacity
100

Product Description

Specification
Model DB-FD940-1 DB-FD940-2
Capacity 1.3m2/h 2.6m2/h
Max. plate size 940×675mm (37×26 inch)
675mm: cylinder width, 940mm: circumference of cylinder
Min. plate size 200×200mm
Plate thickness 0.11~3.94mm
Output media Digital flexographic water-washable letterpress plates;
Digital flexographic water-washable plates;
Digital flexographic solvent-washable plates
Dry film
Application Label printing,Trade mark
Resolution 4800dpi
Loading method Manual loading
Interface Gigabit Ethernet
External dimension(mm) L×W×H=1425mm×980mm×1150mm
Weight 750KG
Power supply AC 220V/1PH 50/60HZ 5kw
Environment Best environment temperature 18-30ºC,Humidity 40-70% non condensing

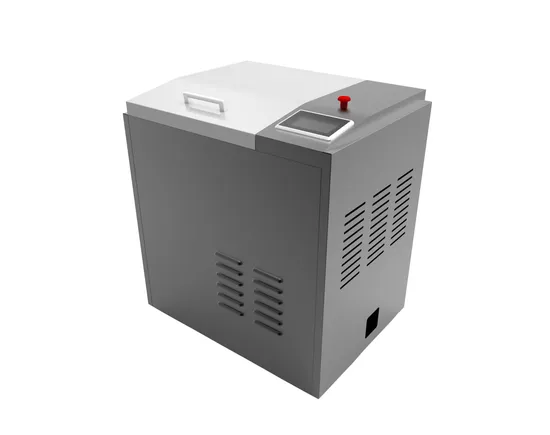

Machine picture
