Milling Drilling Machine / Vertical Milling Machine for Metal

Product Description

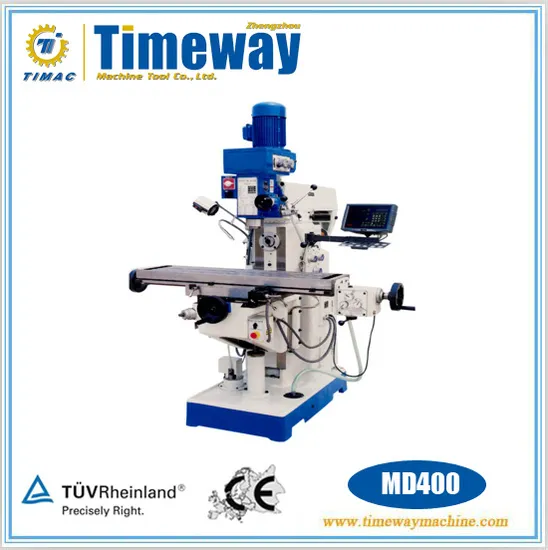

"MD series " Milling Drilling Machine / Vertical Milling Machine For Metal
***Standard Accessories:
Drill chuck, Mill collects, Draw bar, Machine Vise, Coolant syetem, Work lamp, Wrench, Spanner,
Middle sleeve, Elevating rotary handle, Oil collecting plate, Operating manual (English edition).
***Optional Accessories:
58pcs clamping kits, 3 axes DRO, Rotary worktable, Y-axis power feed
***Parameter:

Specification	Unit	MD100 MD100H		MD200 MD200H		MD300 MD300H		MD400	MD500
Spindle taper		ISO30,R8(V) ISO30(H)		ISO30,R8,MT4(V) ISO30(H)		ISO40(V), ISO30(H)		MT4(V), ISO40(H)	ISO40(V), ISO40(H)
Distance from spindle to table	mm	70-420				90-420		90-410	110-410
Spindle speed	rpm	(8steps) 230-1825(V), (8steps) 60-1350(H)	(8steps) 115-1750(V), (8steps) 60-1350(H)			(8steps) 90-2000(V), (8steps) 60-1350(H)		(8steps) 115-1750(V), (12steps) 40-1300(H)
Spindle travel	mm	120
Max. drilling capacity	mm	50
Head swivel		±90º
Table size	mm	80×240					1120(1200)×280
Table travel (Longitudinal/Cross/Vertical)	mm	400/230/350					600/260/300
T-slot(No./width/distance)	mm	3/14/60					3/14/70
Main motor	kw	0.85/1.5(V),1.5(H)			1.5(V),2.2(H)		0.85/1.5(V) 2.2(H)		2.2(V), 2.2(H)
Overall dimension(L×W×H)	mm	1290×1220×2100					1660×1340×2130
Net/Gross weight	kg	800/900,850/1000			820/900,870/1000		1250/1350		1300/1380

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
