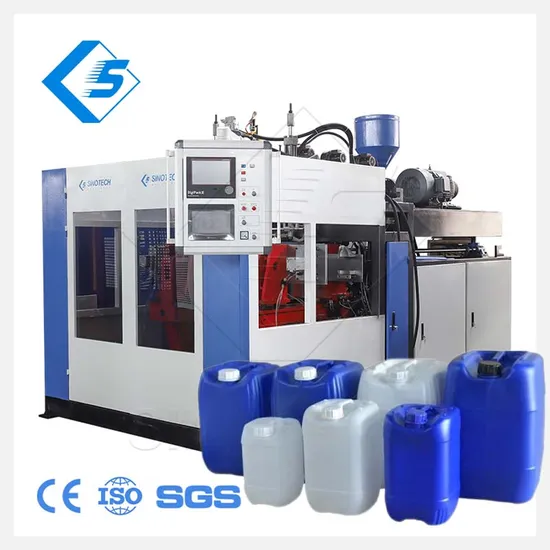

Sinotech Factory Price 20L 30L 60L Drum Barrel Canister Jerrycan Making Blowing Extrusion Blow Molding Moulding Machine with CE Certificated

Product Description

Sinotech Factory Price 20L 30L 60L Drum Barrel Canister Jerrycan Making Blowing Extrusion Blow Molding Moulding Machine with CE Certificated Product Description
STB-30L Accumulator Extrusion Blow Molding Machine
Machine Features
1. Special design for 15-30L HDPE/PE/PP stacking barrels, bottles...
2. High Speed with 50-60pcs/hr.
3. Hydraulic and electric hybrid power design, it makes the machine running more speed and more energy saving
4. Full Servo system control.
5. Simple structure in linear type, easy in installation and maintenance.
6. With robot arm take out the finished product.
7. Single die-head Single station.
Product Parameters

Technical Specification		STD-80/90 Accimulator Die-head Extrusion Blow Molding Machine
Specifications		STD-80 series	STD-90 series
Material		HDPE/PE/PP/ABS...	HDPE/PE/PP/ABS...
Max container capacity	L	30	60
Output (dry Cycle)	pc/hr	360	360
Machine Dimension(LxWxH)	M	4.7x2.6x4	5.7x2.6x4
Total weight	T	12	13
Clamping system
Clamping force	KN	200	300
Platen opening stroke	mm	350-850	450-1050
Platen size(WxH)	mm	750x860	960x980
Max mould size(WxH)	mm	520x1000	700x1200
Mould thickness	mm	360-420	460-600
Power
Max drive	KW	67	74
Total power	KW	82	89
Fan power for screw	KW	0.5	0.5
Air pressure	Mpa	1	1
Air consumption	m3/min	0.8	0.8
Average energy consumption	KW	38	40
Extruder system
Screw diameter	mm	80	90
Screw L/D ratio	L/D	24	24
Melting capacity	kg/hr	120	130
Number of heating zone	zone	4	4
Extruded heating power	KW	21.4	21.4
Extruder driving power	KW	30	37
Accumulator head
Number of hearting zone	zone	4	4
Power of die heating	KW	21.3	21.3
Max die-pin diameter	mm	250	350
Accumulator capacity	L	5	6.6

Detailed Photos
01 Clamping System
1. Latest toggle type clamping system.
2. Big platen size capable to carriage more bigger size moulds.
3. Strong enough clamping force can make the bottles joint line more perfect and smooth.
4. All casting process ensure the clamping system longer life and more precision.
5. More precision carriage stroke and easy to adjust.6.Safety protection device for operator. Good material used for the die head



02 Electrical System
1. All our electrical components areusing international top brands. Such as Japan Mitsubishi,France Schnei der, ABB from Europe, Omron reply, Taiwan delta servo drive controller, Italian Gefran transducer,..
2. Electrical cabinet equipped withcooling fans for temperature adjust.
3. CE standard.

03 Control System
1. Colorful screen display with English.Technical setting date saving system 100 points parison controller, to make sure even thickness of finished product.
2. Optimized switches, easily operation.
3. Latest Wisetech Intelligent control system easy operation.
4. Parison control MOOG 100 points precision to control the wall thickness
5. Production tectonics and parameter saving for 20 moulds.
6. Professional engineer setting pages for problem diagnosis.
7. Short-cut key board & emergency stop or safety production.
8. Aluminum cantilever operation box and easy adjustment.
9. Remote technical support & program

04 Extrusion System
1. High quality hardness bimetallic screw &barrel for PP,PE,HDPE,PVC,PC... high plasticizing and longer life. 2. The extrusion motor adopt famous brand GermanySiemens to ensure the heating result. 3. Pre-heating with intelligent protection for screw and motor4. Heater is adopting high quality ceramic heating technology. 5. Screen filter is optional for small or light weight bottles. 6. Reasonable head runner design for color change quickly. 7. MITSUBISHI Invertor controlling frequency of screwand reducer.
05 Hydraulic System
1. Latest hydraulic oil tank design for smooth running of all hydraulic parts.
2. Hydraulic motor we choose to use servo motor.Servo motor energy saving 50% more than normal motor and Low noise and increase working life of hydraulic units.
3. The machine is equipped with hydraulic valves and hydraulic pumps imported from world-famous companies,thus assuring consistent and reliable working performance.
4. Optimized hydraulic design to adopt pressure, flow and time 3 factors to control action precision and smoothness.
5. Platen moving cylinders with mechanical shuttle valve toreduce impact force at end position.
Seller Recommendation
Company Profile
Certifications
FAQ:
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's the advantage of SINOTECH? We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
