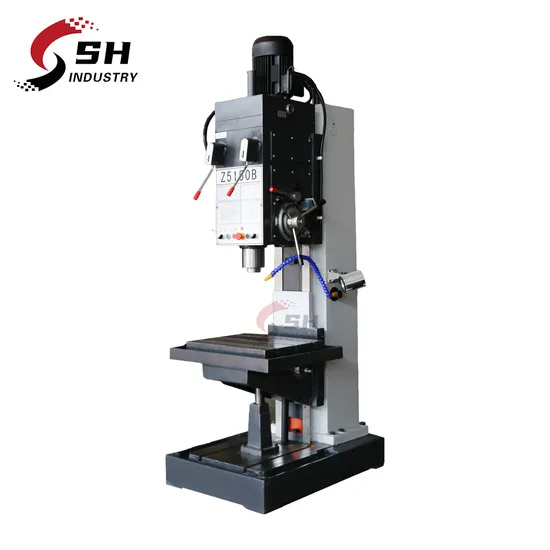

Heavy Duty Square Column Drilling Machine Z5180 Z51100 High Quality Vertical Drilling Machine for Metal Processing

Product Description

Heavy Duty Square Column Drilling Machine Z5180 Z51100 High Quality Vertical Drilling Machine for Metal Processing
Product Description
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:

Specifications	Z5180	Z51100
Max drilling diameter	80mm	100mm
Max feed resistance	30000N	45000N
Max. spindle allowable torque	1000N.m	1150N.m
Spindle taper	Morse NO.6	Morse NO.6
Distance from spindle axis to column guideway	375mm	480mm
Spindle travel	250mm	310mm
Spindle box travel	250mm	300mm
Spindle speed	40-570r/min 9 steps	26-320r/min (6)
The amount of feed(mm/rev)	0.1-0.78 6 steps	0.096-0.717r/min (6)
Working table stroke	300mm	300mm
Working table surface size	650×550mm	760×650mm
Distance from spindle nose to table surface	800mm	850mm
Main motor power	5.5kw	7.5kw
Cooling pump flow	25L/min	25L/min
Overall dimension	1452×965×2787mm	1465×970×3170mm
N/W	3200kg	3500kg

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
