Laboratory PP Pipe Vacuum Sizing Simulation Production Test Line

Product Description

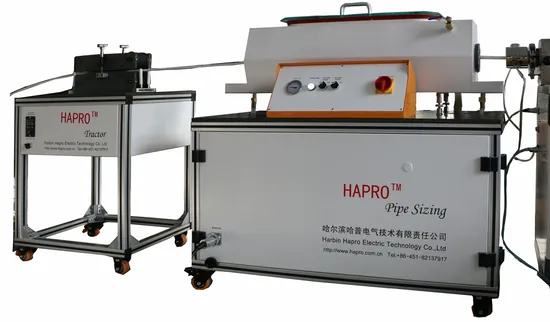

When material comes through Pipe die ,Pipe extrusion can be directly into the vacuum sizing tank ,After cooling and vacuuming, the pipe is formed and fed into the tractor.
After vacuum pumping and water cooling, PVC or PE and other thermoplastic polymer material pipe forming, customers can reduce after further physical testing, such as tensile test

Pipe sizing
Inner Pipe diameter	Ф10 mm	Outer Pipe diameter	Ф12.5 mm
Power supply	AC,220V	Total power	1.7 kW
Sizing	Vacuumize	Cooling	water
Dimension (L×W×H)	1200×600×1000 mm	Weight	200 kg

The pipe tractor is pulled by belt friction, and then the pipe is cut into the size required by the customer by the pipe cutting pliers for subsequent physical experiments, such as tensile test, etc

Pipe Tractor
Traction speed	0.24~2.5 m/min,Manual adjustment	Mode of traction	Belt traction
Power supply	AC,220V	Total power	1.7 kW
Weight	100 kg	Dimension (L×W×H)	1200×600×1000 mm

---
