Product Details
Product Description
Product Description
Egg Grading Machine Automaticr Egg sorting Machine Egg Grader 1.Product introduction:
This Egg Grading machine h can be automatically distributed to different collection baskets according to the weight of the egg. The operation of this egg grader is very simple, After the operator (1-2 people) puts the egg on the conveyor line. This Egg Sorting machine has reliable performance and convenient operation. The egg is not easily broken during the grading process.
Process characteristics of egg classifier:
the parts are consistent, no difference, with good interchangeability
knife conveyor, lever weighing principle, accurate weighing, easy to adjust
eccentric sprocket and compensation sprocket transmission structure to improve efficiency
using the cam gear structure and chain drive, so that the eggs are weighed in order and not damaged
self-rolling rubber wheel, automatically adjust the arrangement of the eggs
light inspection cover, through the light inspection can detect the quality of the egg (optional)

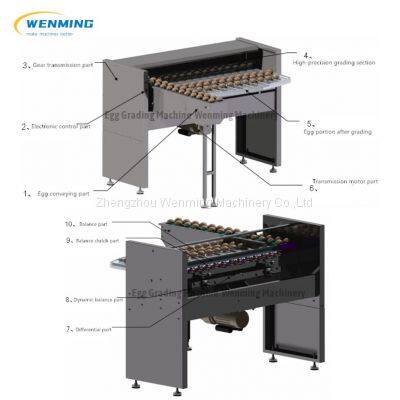

The Egg Garding Machine Structure:
The Egg Garding Machine Principle
2.Technical parameters
Model
| HT-EG7
| WM-EG5
| HT-EG5-2
|
Capacity
| 4000pcs/h
| 5400pcs/h
| 10000pcs/h
|
Material
| Carbon steel
| Carbon steel
| Carbon steel
|
Precision
| ±0.5g
| ±0.5g
| ±0.5g
|
Grade level
| 7
| 5
| 5
|
Power
| 200W
| 200W
| 800W
|
Voltage
| 220V
| 220V
| 220V
|
Length* Width* Height
| 1438*1320*980(mm)
| 1750*1650*1100mm
| 1750*1650*1100mm*2
|
Net weight
| 180KG
| 250KG
| 540KG
|
Gross weight
| 220KG
| 280KG
| 600KG
|
Function
| Grading eggs by weight
| Grading eggs by weight
| Grading eggs by weight
|
3.Pictures and videos of Egg grader Machine：https://youtu.be/XLoROAYBUs4
>>
