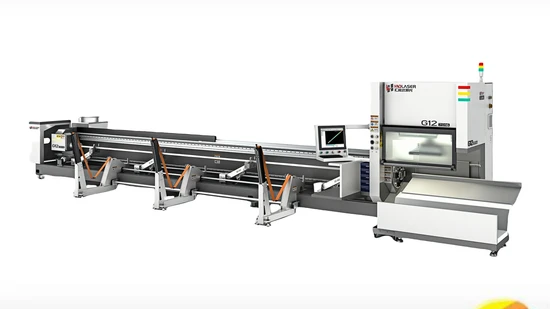

Reliable 1500W 2000W 3000W Fiber Laser Cutter for Metal Tube Processing

Product Description

Product Description

Product Parameters
Parameters of the whole machine

Category	Attribute	Parameter
Machine Attributes	Equipment series	Small-sized platform: 125 series
	Size(mm)	9600*3300*2300
	Total weight (ton)	4.2T
	Full power consumption of the whole machine (KW)	20~25
	Operating temperature (ºC)	0-40
	Cutting material	Carbon steel, stainless steel, aluminum alloy, copper, brass, etc
	Cutting function	Cutting;Punching holes;Chamfering
Processing range	Processing stroke (mm)	Round tube: ¢12- ¢180 Square tube:12-125 Rectangular tube:max150*100
	Cutting seam width (mm)	0.1-0.2
Acceleration	Maximum acceleration on X/Y axis	1.5G

Technical parameters of components

Component Name	attribute	Parameter values
Laser	Output power	3000W
	Working mode	Continuous optical fiber
	Fiber diameter	50μm
	Cooling method	Water-cooling
	Cutting material	Metals such as carbon steel, stainless steel, aluminum alloy, copper, brass, etc
Machine bed	Structure	Pipe plate welding
	Length	Optional

Key component configuration

Serial number	Component Name	Brand	Model/Origin
Key components
1	Fiber laser	Raycus(optional)	China
2	Cutting head	OSPR/BOCHU(optional)	China
3	Motor	INOVANCE/YASKAWA(optional)	China/Japan
4	Laser specific chiller	Hanli/CW	famous Chinese brand
5	Electronic control components	Schneider,France	China
6	Pneumatic components	AIRTAC, Taiwan	China
Processing components
7	Main bed	HND Laser	China
8	Chuck	HND Laser	China
9	Loading and unloading system	HND Laser	China
Special CNC cutting system
10	Operating system	Shanghai FSCUT	Bus System/China
11	Nesting software	Shanghai FSCUT	3D pipe cutting specialized software/China
Other
12	Packaging and transportation	Standard packaging	Standard configuration

Our customers
Certifications
Laser Cutting Machine SGS Certificated
(Can be customized to your needs)
Experience the utmost confidence with our laser cutting machine, which proudly holds the esteemed SGS certification. This prestigious seal confirms that our equipment not only surpasses in mechanical performance but also unfailingly meets international safety and stability standards. For business owners, managers, and operators, this guarantees a vital commitment to reliability and safety, ensuring flawless operation and peace of mind every time.
Packaging & Shipping
Our laser tube cutting machines have reached over 50 countries globally, providing assurance that your products will be delivered safely and efficiently to your factory doorstep.


Company Profile
Company Information
ZHANGJAGANG HNDLASER TECHNOLOGY CO.,LTD HNDLaser Technology Co., Ltd. stands as a distinguished national high-tech enterprise supported by HNDLaser in Zhangjiagang. We excel in the research, development, production, and application of state-of-the-art laser equipment. Our portfolio boasts Zhangjiagang HND Intelligent Equipment Co. along with other prestigious enterprises.
With steady and substantial yearly R&D investments, our products have earned extensive market recognition, securing a robust production output throughout the entire laser industry spectrum. HNDLaser is deeply rooted in a philosophy that prioritizes people and thrives on scientific and technological innovation. Emphasizing innovation and talent development remains our foundation for steadily increasing market share and enhancing product acknowledgment.

After Sales Service
A. Pre-Sales Service
1. Technical Consultation: We pledge to provide you with expert technical and pricing advice within two hours tailored to your specific needs. We can dispatch pertinent samples and product details promptly, addressing any queries you have, such as processing table dimensions, precision, cutting thickness, and operational costs associated with cutting parameters.
2. Site Visits: We cordially invite you to visit our company for assessments at any time from any location.
B. After-Sales Service
1. We have instituted a thorough after-sales service system to monitor customer feedback around the clock.
2. Starting from your purchase date, you are welcome to participate in various technical training sessions at our company at no cost.
3. After acquiring the machine, we can dispatch technicians to your country for installation support and operational training.
4. You are encouraged to share suggestions or inquiries through multiple channels, such as phone, fax, mail, email, or website customer messages.
FAQ
Q1: What about the warranty period?
A1: Rest assured, if you encounter any issues with the main components of the machine (excluding consumables) during the warranty period, we'll swiftly replace or repair them at no extra cost.
Q2: I'm unsure which model best suits my needs. Can you help me decide?
A2: Certainly! Please provide the following information:
(1) The type of material you're working with.
(2) The thickness,diameter,length and shape of your material.
(3) The cutting requirements you need.
Q3: What are your payment terms?
A3: We offer flexible payment options such as TT, Western Union, PayPal, LC, and Cash, among others.
Q4: Do you provide CE certification and other necessary clearance documents?
A4: Absolutely, we have all the essential original documents. Post-shipment, we'll supply you with the CE document, packing list, commercial invoice, and sales contract to facilitate customs clearance.
Q5: What should I do if I'm unfamiliar with the machine operation or encounter issues after receiving it?
A5: Don't worry, we provide a comprehensive user manual with detailed images and a USB disk to guide you step-by-step. Plus, we offer monthly updates to keep you informed on any advancements.
Q6: How can I obtain a sample to verify the quality and results?
A6: Simply send us your sample, and we'll conduct a free test for you.
Q7: When can I expect to receive a quotation?
A7: Your inquiry will be addressed with expertise and precision within 12 hours.

---
