550 500 mm Window Making Machine CNC Machine Cutting Machine Aluminum Double Head Cutting Machine

Product Description

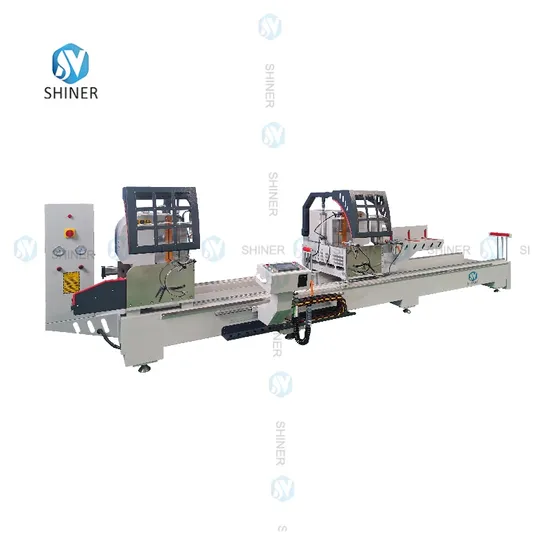

CNC double head aluminium profile cutting machine
LJZ2S-550*4200-CNC
Product Description
Used for cutting aluminum alloy, upvc/pvc profile at -45, 90degree. CNC Control System. Setting up the length data of saw blade, the machine will working automatic. The machine adopts pneumatic drive , linear feeding way, feeding smoothly. Cemented carbide circular saw blade ,cutting high accuracy, long service life. The whole machine with strong structure, stable performance. Large range of cutting and high productivity suitable for large quantities, continuity, mufti-variety plastic windows and doors production. Product Parameters

Technical Parameter
Input voltage	380V/50Hz(As Required)
Input power	6.75Kw
Spindle rotary speed	2800rpm
Air pressure	0.5~0.8Mpa
Air consumption	100L/min
Max cutting width	190mm
Max cutting height	90°210mm / 45°140mm
Saw blade diameter	Ø550mm*Ø30mm
Cutting angle	-45°,90°
Cutting length	380~4200mm
Overall dimension	6200*1800*1600mm

Detailed Photos
Equipped horizontal and vertical clamping fixture, to fix the profile on the machine bed well.
Auto degree change by button.
CNC Control System. Setting up the length data of saw blade, the machine will working automatic.

Packaging & Shipping
Packing DetailFor LCL(less container load) shipping, we will adopt the following packing method:Inner package: stretch filmOutside package: standard export plywooden casesFor FCL(full container load) shipping ,all machines will wrap with film and same time fixed the machines into container with steel iron.Delivery DetailUsually we will arrange dispatch within 3-5 working day after receive payment.If there are big order or customized machines, it will take 10-15 working day.

Company Profile
Shandong Nisen Trade Co., Ltd is a trading company based on Jinan Huashinuo CNC Machinery Co., Ltd. Jinan Huashinuo CNC Machinery Co., Ltd. is a modern private enterprise specializing in technology development, machinery manufacturing and product sales.We are a leading manufacturer of window&door machinery with 17 years experiences in China, and exported to more than 20 countries all over the world.
Our main products including full set machines for aluminum &PVC window door making and insulating glass making, such as cutting machines, PVC welding machines, aluminum drilling and milling machines, etc. Our engineers have more than 15 years experience in machine production, which makes the machine precision and stability better. After the machine is produced, the product is professionally tested to ensure its performance.
If you are a window manufacturer looking for new machines to expand your business, if you are interested in upvc window production line as your new business, or you have any questions about window machines, the Huashinuo team is already here to support you!

Our Exhibition
Our Service
1.Warranty time will be 12 months, lifetime maintenance.
2.Within 7 days from your local customs clearance: If any part of the machine has any problem, we will change it for free.
3. Exceed 7 days from your local customs clearance but within warranty period: If the machine parts have any problem, we can exchange the old machine parts for new one for free.
4. Exceed warranty period: If the machine parts have any problem, we can offer new machine parts with cost price but you pay all the shipping cost.

FAQ

Are you manufacturer?	Yes,we are a professional manufacturer which have more than 15 years experience in this industry.
What's the guarantee ?	1.Our guarantee for 12 months. 2.24 hour's technical support by email or phone 3.English manual and video tutorial 4.We will provide the consumable parts at agency price 5.free technical support.
What accessories do you offer?	1.We will send you standard accessories with the machine. 2.We will send you free accessories for change. 3.We will provide the consumable parts at an agency price.
If I want whole production line for upvc windows, what machines do I need?	At least 7 machines, they are 1. Double / single head cutting machine 2. Welding machine 3. V cutting / end milling machine 4. Glazing bead machine 5. Lock hole machine 6. Water slot milling machine 7. Corner cleaning machine
If I want whole production line for aluminum window, what machines do I need?	At least 5 machines, they are 1. Double / single head cutting machine 2. End milling machine 3. Copy routing machine 4. Punching machine 5. Corner crimping machine

---
