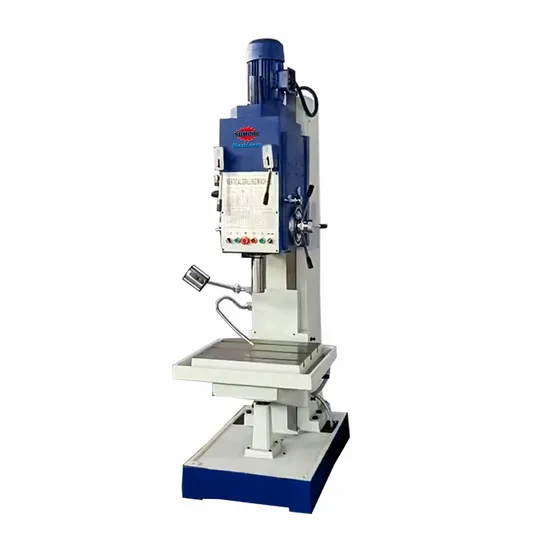

Product Description SUMORE Z5140B radial borehole vertical metal column drilling and milling machine SP5140B 40mm borehole diameter drilling machine * Robust Construction & Stable Performance * Brushless Motor & Variable Spindle Speed * Fine & Smooth Feeding Movement on Every Directions * High Precision for Model Engineering * Changable Table Length for Different Workpieces * Optional Spindle Speed & Cutting Depth Digital Readout * Optional Automatic Longitudinal Feeder Product Parameters
Main technical parameters
SP5140B
Maximum borehole diameter mm
40
Maximum Feed Resistance N of Main Shaft
1600
Maximum spindle torque N.m
350
Main motor power kw
3
Conicity of main cone hole NO
4
Spindle speed r.p.m
31.5-1400(12 steps)
Feed per spindle revolution mm/rev
0.056-1.80(9 steps)
Spindle stroke mm
250
Spindle box stroke mm
200
Distance from spindle centerline to pillar mm
335
Longitudinal and transverse travel mm of worktable
no
Vertical travel mm of worktable
300
Maximum distance from end face of spindle to worktable mm
750
Table size mm
480*560
Machine tool weight kg
1250
Outline dimension mm
1050*710*2540
