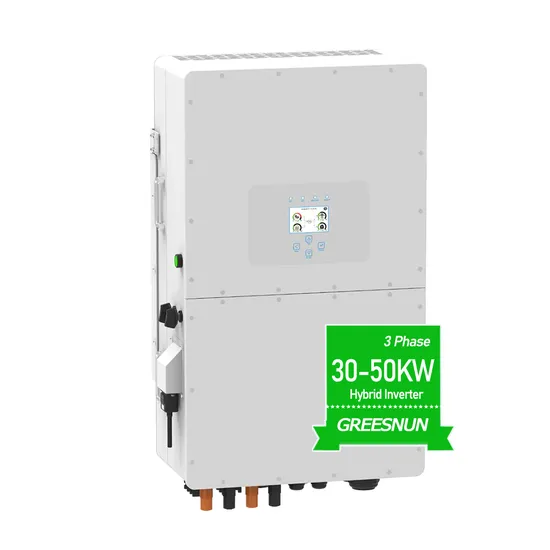

| Model | SUN-20K-SG01HP3-EU | SUN-30K-SG01HP3-EU | SUN-40K-SG01HP3-EU | SUN-50K-SG01HP3-EU |
| Battery Input Data |
| Battery Type | Lithium-ion |
| Battery Voltage Range (V) | 150~800V |
| Max. Charging Current (A) | 50A+50A |
| Max. Discharging Current (A) | 50A+50A |
| Number of battery input | 2 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| PV String Input Data |
| Max. DC Input Power (W) | 32500W | 39000W | 52000W | 65000W |
| Max. DC Input Voltage (V) | 1000V |
| Start-up Voltage (V) | 150V |
| MPPT Range (V) | 200V-850V |
| Full Load DC Voltage Range (V) | 450-850 | 360-850 | 360-850 | 450-850 |
| Rated DC Input Voltage (V) | 600 |
| PV Input Current (A) | 36A+36A | 36A+36A+36A | 36A+36A+36A+36A |
| Max. PV ISC (A) | 55A+55A | 55A+55A+55A | 55A+55A+55A+55A |
| No. of MPP Trackers | 2 | 3 | 4 |
| No. of Strings per MPP Tracker | 2 |
| AC Output Data |
| Rated AC Output and UPS Power (W) | 25000W | 3000W | 40000W | 50000W |
| Max. AC Output Power (W) | 27500W | 33000W | 44000W | 55000W |
| Peak Power (off grid) | 1.5 times of rated power, 10 S |
| AC Output Rated Current (A) | 38 | 45.6 | 60.8 | 75.8 |
| Max. AC Current (A) | 50 | 60 | 70 | 83.3 |
| Max. Continuous AC Passthrough (A) | 150A |
| Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac,230/400Vac |
| Grid Type | Three Phase |
| DC injection current (mA) | <0.5% 1n |
| Certifications and Standards |
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data |
| Operating Temperature Range (ºC) | -40~60ºC, >45ºC Derating |
| Cooling | Smart cooling |
| Noise (dB) | <45 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 80kg |
| Size (mm) | 560.5W×837H×319D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery,solar inverter and complete solar energy system for residential and C&I application. Having professional engineering team, Greensun Solar provide best design and customization of One-Stop Solar Solution. Greensun Solar was founded in 2004, headquartered in Hefei, Anhui China. Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management. We have comprehensive product range: solar panel, inverter, controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
